Screw Diameter 90mm
Theoretical Inj. Volume 2702cm3
Max. Injection Pressure 1548kg/cm2
Max. Injection Speed 566cm3/sec
Max. Shot Weight(PS) 2440gram
Screw Rotation Speed 148rpm
Nozzle Radius 15mm
Heating Zone 9zones
Heating capacity 30kw
Distance between Tie Bars 960*960mm
Dimension of Platen 1480*1480mm
Mold Height 350-1100mm
Mold Opening stroke 1000mm

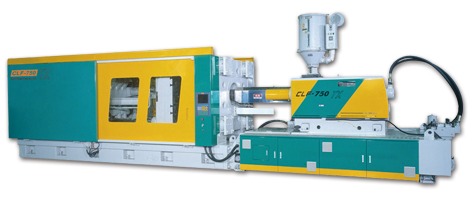

Clamping Force 750Tons
Dia. of locating Ring 200mm
Ejector Stroke 300mm
Ejecting Force 13.3Tons
Capacity of Oil Reservoir 1450liters
Machine Dimension 9.6*2.25*2.3m
Net Weight 40Tons
