cutting machine

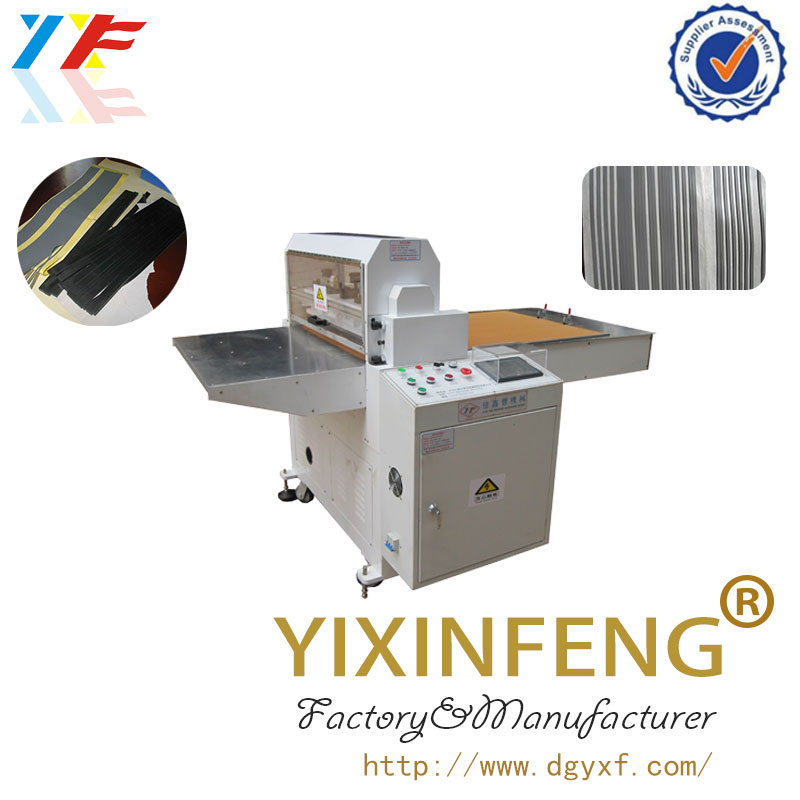

Series of High Precision Jumping Cutting Machine for many kinds of plastic boards
Product ID: YF-800C
Send Inquiry
Features:
1. Adopt PLC and control the piece size accurately 0.05.
2. Cutting speed can reach to 90 times/ min.
3. Adopt imported cutting knife, long lifespan, neat and good-looking.
4. Micro-computer operation can make full-cut or half –cut.
Application:
Cutting of various soft materials, such as rubber plate ,sponge,paper board ,silica gel etc.
Specification:
Model YF-600C YF-800C
Cutting Length 0-650mm 0-900mm
Cutting Width 0-600mm 0-800mm
Cutting Thickness 0-20mm 0-20mm
Main Motor power(KW) 2.4KW 2.4KW
Voltage(V) 380V 380V
Dimension(MM) 1600*1200*1300mm 1800*1400*1400mm
Net weight(KG) 360KG 400KG
1. Adopt PLC and control the piece size accurately 0.05.
2. Cutting speed can reach to 90 times/ min.
3. Adopt imported cutting knife, long lifespan, neat and good-looking.
4. Micro-computer operation can make full-cut or half –cut.
Application:
Cutting of various soft materials, such as rubber plate ,sponge,paper board ,silica gel etc.
Specification:
Model YF-600C YF-800C
Cutting Length 0-650mm 0-900mm
Cutting Width 0-600mm 0-800mm
Cutting Thickness 0-20mm 0-20mm
Main Motor power(KW) 2.4KW 2.4KW
Voltage(V) 380V 380V
Dimension(MM) 1600*1200*1300mm 1800*1400*1400mm
Net weight(KG) 360KG 400KG
