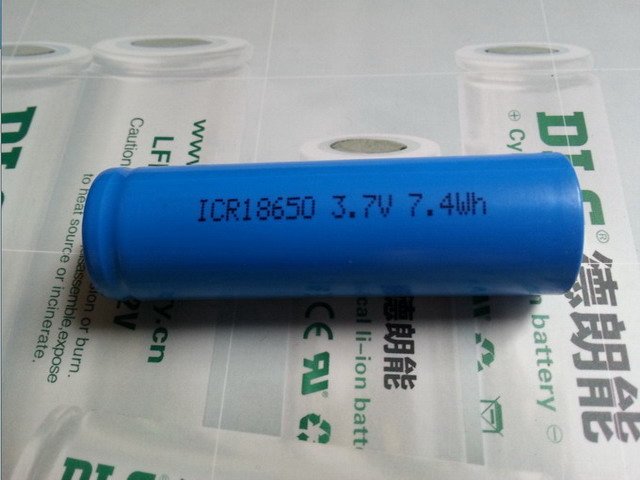

ICR18650 cylindrical li-ion rechareable batteries
Product Specifications Type ---Normal Cylindrical Battery
Model------------------------------------ICR18650-260
Dimension (Including shrink sleeve/label)
Diameter, d ------------------------------------ 18.1±0.2mm
Height, h ---------------------------------------- 64.7±0.3mm
Mass----------------------- --------------------- 48g (Approx)
Model-------------------------------------------- ICR18650-220
Diameter, d ------------------------------------ 18.10.2mm
Height, h ---------------------------------------- 64.5±0.5mm
Mass----------------------- --------------------- 47g (Approx)
Nominal voltage -------------------------------3.7V
Capacity(0.2C discharge) C: Nominal--2200mAh
Minimum----------------------------------------- 2200mAh
Maximum charge voltage--------------------4.2V
Maximum continuous charge current----2200mAh
Maximum discharge current Continuous--4400mAh
Discharge cut-off voltage------------------------ 2.75V
Internal impedance)(23±20-25)-------------≤65mΩ
Operation temperature Discharge-----------20-60
Charge-------------------------------------------------0-45
Product Specifications Type --------Normal Cylindrical Battery
Model-----------------------------------------ICR18650-200
Dimension (Including shrink sleeve/label)
Diameter, d ------------------------------------ 18.1±0.2mm
Height, h ---------------------------------------- 64.7±0.3mm
Mass----------------------- --------------------- 48g (Approx)
Model-------------------------------------------- ICR18650-200
Diameter, d ------------------------------------ 18.1±0.2mm
Height, h ---------------------------------------- 64.5±0.5mm
Mass----------------------- --------------------- 45g (Approx)
Nominal voltage -------------------------------- 3.7V
Capacity(0.2C discharge) C: Nominal-----------2000mAh
Minimum----------------------------------------- 2000mAh
Maximum charge voltage----------------------- 4.2V
Maximum continuous charge current----------- 2000mAh
Maximum discharge current Continuous------- 4000mAh
Internal impedance)(23±20-25)------------- ≤65mΩ
Operation temperature Discharge-------------- -20-60
Charge-------------------------------------------- 0-45
Storage temperature
non-condensing
Within 1month-------------------------------------0-45
1-3months-----------------------------------------0-35
3-12months----------------------------------------0-25
Model------------------------------------ICR18650-260
Dimension (Including shrink sleeve/label)
Diameter, d ------------------------------------ 18.1±0.2mm
Height, h ---------------------------------------- 64.7±0.3mm
Mass----------------------- --------------------- 48g (Approx)
Model-------------------------------------------- ICR18650-220
Diameter, d ------------------------------------ 18.10.2mm
Height, h ---------------------------------------- 64.5±0.5mm
Mass----------------------- --------------------- 47g (Approx)
Nominal voltage -------------------------------3.7V
Capacity(0.2C discharge) C: Nominal--2200mAh
Minimum----------------------------------------- 2200mAh
Maximum charge voltage--------------------4.2V
Maximum continuous charge current----2200mAh
Maximum discharge current Continuous--4400mAh
Discharge cut-off voltage------------------------ 2.75V
Internal impedance)(23±20-25)-------------≤65mΩ
Operation temperature Discharge-----------20-60
Charge-------------------------------------------------0-45
Product Specifications Type --------Normal Cylindrical Battery
Model-----------------------------------------ICR18650-200
Dimension (Including shrink sleeve/label)
Diameter, d ------------------------------------ 18.1±0.2mm
Height, h ---------------------------------------- 64.7±0.3mm
Mass----------------------- --------------------- 48g (Approx)
Model-------------------------------------------- ICR18650-200
Diameter, d ------------------------------------ 18.1±0.2mm
Height, h ---------------------------------------- 64.5±0.5mm
Mass----------------------- --------------------- 45g (Approx)
Nominal voltage -------------------------------- 3.7V
Capacity(0.2C discharge) C: Nominal-----------2000mAh
Minimum----------------------------------------- 2000mAh
Maximum charge voltage----------------------- 4.2V
Maximum continuous charge current----------- 2000mAh
Maximum discharge current Continuous------- 4000mAh
Internal impedance)(23±20-25)------------- ≤65mΩ
Operation temperature Discharge-------------- -20-60
Charge-------------------------------------------- 0-45
Storage temperature
non-condensing
Within 1month-------------------------------------0-45
1-3months-----------------------------------------0-35
3-12months----------------------------------------0-25
Certificate
- ISO9001:2000
- ISO14001
- UL
- CE
- etc.
Main Products
cylindrical li-ion batteries, li-polymer batteries and li-ion battery
