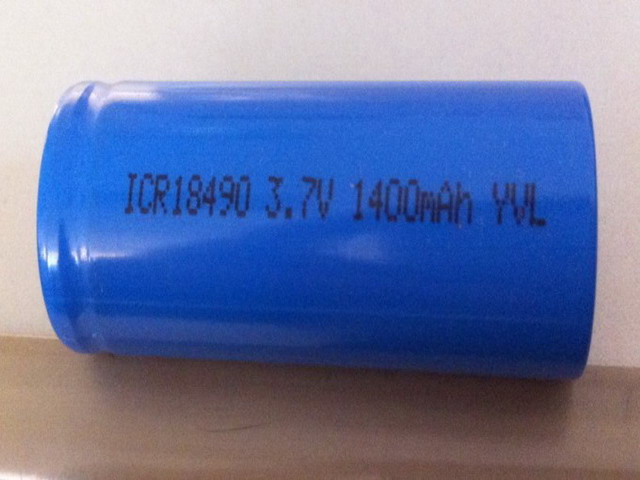

Product Specifications Type --Normal Cylindrical Battery
Model-------------------------------------------- ICR18490
Dimension (Including shrink sleeve/label)
Diameter, d ------------------------------------ 18.0.2mm
Height, h ---------------------------------------- 48.50.5mm
Mass----------------------- --------------------- 33g (Approx)
Nominal voltage ------------------------------ 3.7V
Capacity(0.2C discharge) C: Nominal------- 1400mAh
Minimum---------------------------------------1400mAh
Maximum charge voltage-------------------- 4.2V
Maximum continuous charge current---------1400mA
Maximum discharge current Continuo------- 2800mA
Discharge cut-off voltage----------------------2.75V
Internal impedance)(232)---------------------≤70mΩ
Operation temperature Discharge-------------20-60
Charge-------------------------------------------0-45
Storage temperature
non-condensing
Within 1month----------------------------------0-45
1-3months--------------------------------------0-35
3-12months-------------------------------------0-25
