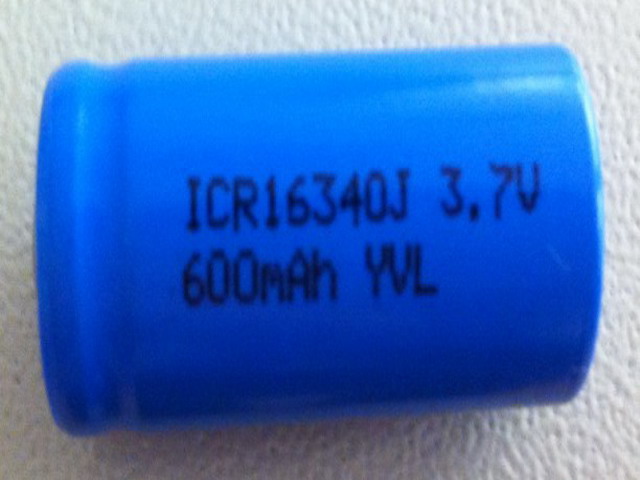

Product Specifications Type -----------------Normal Cylindrical Battery
Model-------------------------------------------ICR16340E-060
Dimension (Including shrink sleeve/label)
Diameter, d ---------------------------------------------- 16.5±0.2mm
Height, h ------------------------------------------------- 33.7±0.5mm
Mass----------------------- ------------------------------- 17g (Approx)
Nominal voltage ------------------------------------------ 3.7V
Capacity(0.2C discharge) C: Nominal------------------- 600mAh
Minimum-------------------------------------------------- 600mAh
Maximum charge voltage-------------------------------- 4.2V
Maximum continuous charge current-------------------- 600mA
Maximum discharge current Continuous---------------- 1200mA
Discharge cut-off voltage--------------------------------- 2.75V
Internal impedance)(23±2)---------------------------- ≤85mΩ
Operation temperature Discharge-------------------20-60
Charge---------------------------------------------------------0-45
Storage temperature
non-condensing
Within 1month--------------------------------------------- 0-45
1-3months------------------------------------------------- 0-35
3-12months------------------------------------------------ 0-25
