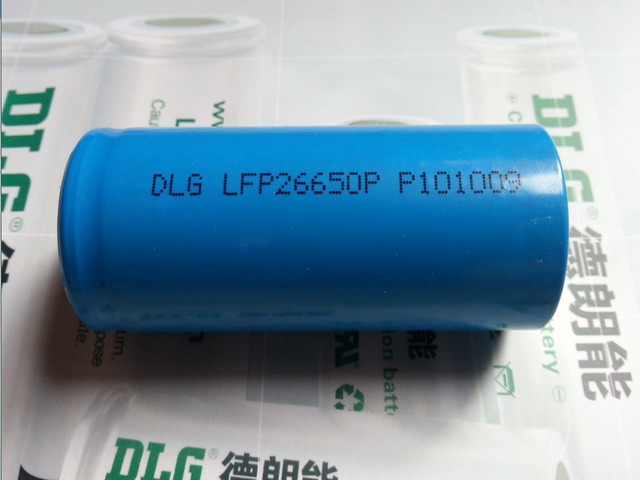

Product Specifications Type ---Cylindrical Lithium Iron Phosphate Battery
Model-------------------------------------------LFP26650E-320
Dimension (Including shrink sleeve/label)
Diameter, d ------------------------------------26.0±0.2mm
Height, h ----------------------------------------65.5±0.5mm
Mass----------------------- ----------------------81g (Approx)
Nominal voltage -------------------------------3.7V
Capacity(0.2C discharge) C: Nominal-----3200mAh
Minimum----------------------------------------3200mAh
Maximum charge voltage--------------------3.65V
Maximum continuous charge current------3200mAh
Maximum discharge current Continuous--6.6A
Discharge cut-off voltage--------------------2.5V
Internal impedance)(23±2)---------------- ≤30mΩ
Operation temperature Discharge-------20-60
Charge---------------------------------------------0-45
Model-------------------------------------------LFP26650E-320
Dimension (Including shrink sleeve/label)
Diameter, d ------------------------------------26.0±0.2mm
Height, h ----------------------------------------65.5±0.5mm
Mass----------------------- ----------------------81g (Approx)
Nominal voltage -------------------------------3.7V
Capacity(0.2C discharge) C: Nominal-----3200mAh
Minimum----------------------------------------3200mAh
Maximum charge voltage--------------------3.65V
Maximum continuous charge current------3200mAh
Maximum discharge current Continuous--6.6A
Discharge cut-off voltage--------------------2.5V
Internal impedance)(23±2)---------------- ≤30mΩ
Operation temperature Discharge-------20-60
Charge---------------------------------------------0-45
Certificate
- ISO9001:2000
- ISO14001
- UL
- CE
