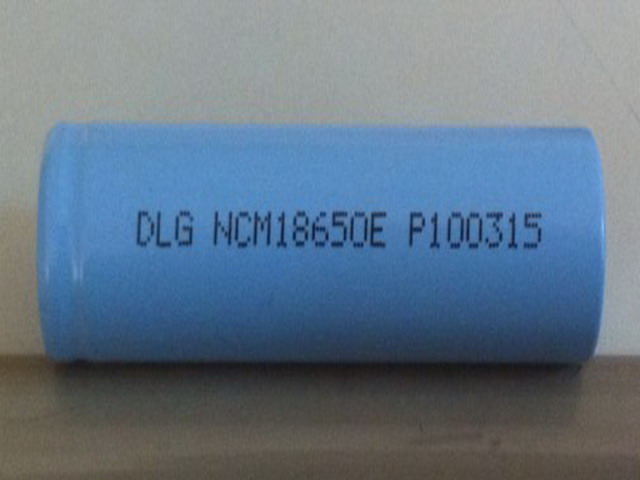

18650
Product Specifications Type ------ Normal Cylindrical Battery
Model-------------------------------------------- NCM18650-220
Dimension (Including shrink sleeve/label)
Diameter, d ---------------------------------------18.2±0.2mm
Height, h -------------------------------------------64.7±0.3mm
Mass----------------------- -------------------------45g (Approx)
Nominal voltage ----------------------------------3.6V
Capacity(0.2C discharge) C: Nominal----2200mAh
Minimum---------------------------------------------2200mAh
Maximum charge voltage----------------------4.2V
Maximum continuous charge current------2200mA
Maximum discharge current Continuous-------4400mA
Discharge cut-off voltage-------------------------2.75V
Internal impedance)(23±2°C)------------ ------≤60mΩ
Model-------------------------------------------- NCM18650-220
Dimension (Including shrink sleeve/label)
Diameter, d ---------------------------------------18.2±0.2mm
Height, h -------------------------------------------64.7±0.3mm
Mass----------------------- -------------------------45g (Approx)
Nominal voltage ----------------------------------3.6V
Capacity(0.2C discharge) C: Nominal----2200mAh
Minimum---------------------------------------------2200mAh
Maximum charge voltage----------------------4.2V
Maximum continuous charge current------2200mA
Maximum discharge current Continuous-------4400mA
Discharge cut-off voltage-------------------------2.75V
Internal impedance)(23±2°C)------------ ------≤60mΩ
Certificate
- ISO9001:2000
- ISO14001
- UL
- CE
- etc.
Main Products
cylindrical li-ion batteries, li-polymer batteries and li-ion battery
