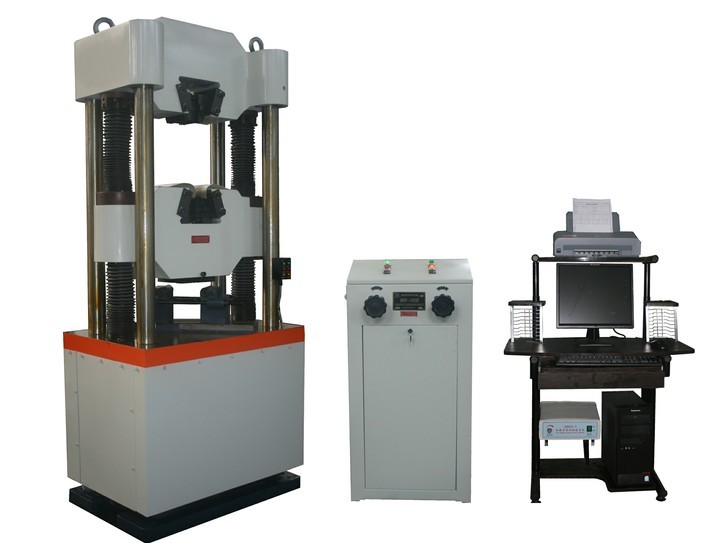

WAW-1000H




Max Force kN


1000




Class


1




Measuring range : kN


20～1000







50000




Max.tensile space : mm


620




Max. Compression space mm


580




Accuracy for force


≤±1%




Accuracy for distortion


≤±1%




Accuracy for displacement


≤±2%




Accuracy for constant force. constant distortion .constant displacement


≤±1%




Round sample (mm)


φ14～φ45




Flat sample mm)


0～40




Piston travel :mm


250




Upper and lower plate mm


250X250




Max distance between curving testing of roll :mm


100～500




The distance between bilateral stanchion :mm


640




Max,rising speed of the tableplate mm


≥70




Max.rising &falling speed of the crossbeam mm


≥300




Motor power kW


2.1




External dimension (L×W×H)mm


1050×680×2430




Control tank dimension (L×W×H)mm


1100×750×950




Working noise dB


≤75




Weight :kg


~4000



Notes: WAW-1000B can be equipped with Φ20-Φ60 clamp jaw according to customers requirements

we can provide power supply with 50～60HZ/220V. please marked it in the order contract.
