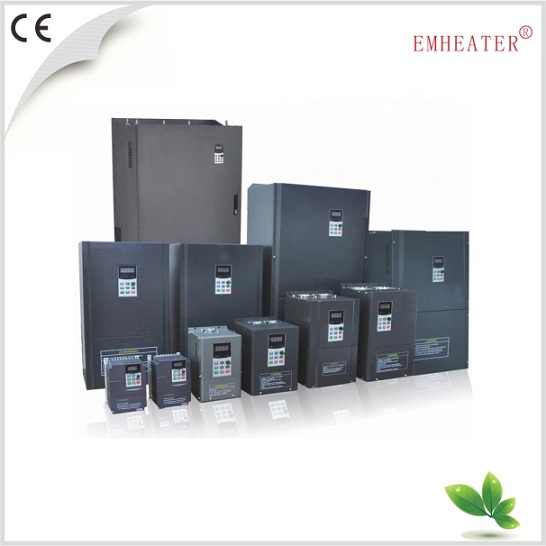

EM9 Series Vector Control Inverter
Feature:
1: Input Voltage Range: 380/220V+15%
2: Input Frequency Range: 47 ~ 63Hz
3: Output Voltage Range: 0 ~ rated input voltage
4: Output Frequency Range: 0 ~ 600Hz
5: Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current.
6: Self study motor parameter function
7: Control Mode: Sensorless Vector Control (SVC); Constant Torque; V/F Control.
8: Speed Accuracy: Sensorless Vector Control : -5% ~ +0.5% of maximum speed (SVC)
9: Starting Torque: 150% of rated torque at 0.5Hz (SVC).
10: Programmable Timing Running(Simple PLC)
11: All model are integrated IGBT
12: The malfunction ratio is 0.1% within 18 months warranty.
Specifications:
Items Specification
Input Rated input voltage Single Phase 220V +15%,Three phase 220 /380/460/690V + 15%, 47~ 63 Hz
Output Maximum output voltage Maximum output voltage is same with input power
Output feature 100% continuous output
Basic control
function Over-load capacity 150% rated current
Feature:
1: Input Voltage Range: 380/220V+15%
2: Input Frequency Range: 47 ~ 63Hz
3: Output Voltage Range: 0 ~ rated input voltage
4: Output Frequency Range: 0 ~ 600Hz
5: Overload Capacity: 60s with 150% of rated current, 10s with 180% of rated current.
6: Self study motor parameter function
7: Control Mode: Sensorless Vector Control (SVC); Constant Torque; V/F Control.
8: Speed Accuracy: Sensorless Vector Control : -5% ~ +0.5% of maximum speed (SVC)
9: Starting Torque: 150% of rated torque at 0.5Hz (SVC).
10: Programmable Timing Running(Simple PLC)
11: All model are integrated IGBT
12: The malfunction ratio is 0.1% within 18 months warranty.
Specifications:
Items Specification
Input Rated input voltage Single Phase 220V +15%,Three phase 220 /380/460/690V + 15%, 47~ 63 Hz
Output Maximum output voltage Maximum output voltage is same with input power
Output feature 100% continuous output
Basic control
function Over-load capacity 150% rated current
