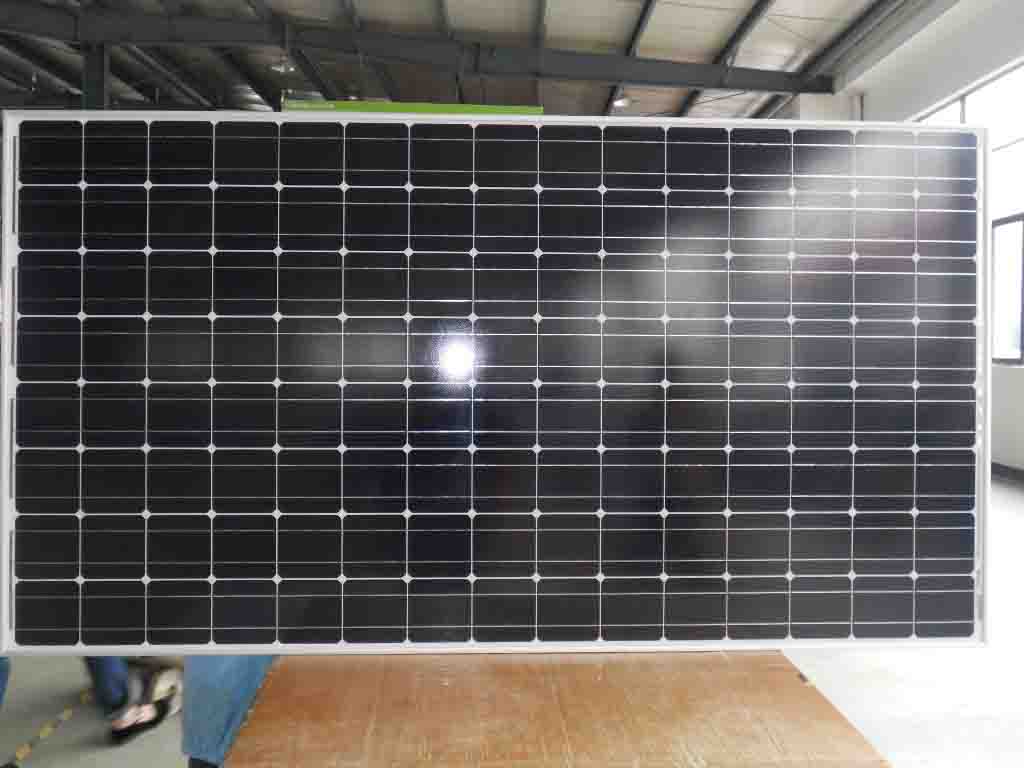

New 330W Mono Solar Panel
Parameter:
Maximum Power (Pmax) 330W
Power Tolerance ±3%
Maximum Power Voltage (Vmp) 53.05Volt
Maximum Power Current (lmp) 6.23Ampere
Open circuit Voltage (Voc) 62.8Volt
Short circuit Current (lsc) 7.04Ampere
Maximum System Voltage 1000Volt DC
Temp. coefficient Voc -0.35+/-0.02%/°C
Temp. coefficient Isc +0.04+/-0.0015%/°C
Temp. coefficient Power -0.5+/-0.05%/°C
Nominal operating cell temperature (NOCT) 47°C+/-2°C
Cell Size 156*156mm
Cell Shape Quasi Square
Number Cells 104(8*13)in series
Frame structure (Material, Corners) Aluminium
Front side Glass
Front glass thickness 3.2mm
Back side TPT
Junction Box Pass TUV certificate
Operating Temperature -40°C~+90°C
Storage Temperature -40°C~+90°C
Dielectric Isolation Voltage 1000V
Maximum Wind Resistance 60m/s
Maximum Load Capacity 200Kg/sq.m
Weight(KG) 34KG
Parameter:
Maximum Power (Pmax) 330W
Power Tolerance ±3%
Maximum Power Voltage (Vmp) 53.05Volt
Maximum Power Current (lmp) 6.23Ampere
Open circuit Voltage (Voc) 62.8Volt
Short circuit Current (lsc) 7.04Ampere
Maximum System Voltage 1000Volt DC
Temp. coefficient Voc -0.35+/-0.02%/°C
Temp. coefficient Isc +0.04+/-0.0015%/°C
Temp. coefficient Power -0.5+/-0.05%/°C
Nominal operating cell temperature (NOCT) 47°C+/-2°C
Cell Size 156*156mm
Cell Shape Quasi Square
Number Cells 104(8*13)in series
Frame structure (Material, Corners) Aluminium
Front side Glass
Front glass thickness 3.2mm
Back side TPT
Junction Box Pass TUV certificate
Operating Temperature -40°C~+90°C
Storage Temperature -40°C~+90°C
Dielectric Isolation Voltage 1000V
Maximum Wind Resistance 60m/s
Maximum Load Capacity 200Kg/sq.m
Weight(KG) 34KG
