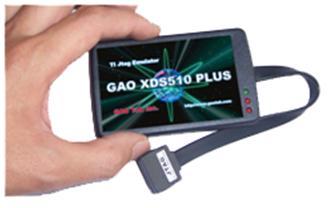

Overview – XDS510 USB Plus JTAG Emulator
The XDS510 plus emulator is a DSP development tool (DSP emulator) which uses XDS560 JTAG technology to greatly improve its stability and anti-interference capabilities. The emulator fully supports Code Composer Studio version 2.2 to CCS 4.0 and the latest DaVinci™ platforms from Texas Instruments. The emulator uses 560 JTAG POD simulation techniques and conducts full space emulation. It is equipped with USB 2.0 and 14-pin JTAG interfaces and runs under operating systems from Windows 2000 to Windows 7. The emulator supports the following TI DSPs: LF24xx, F28xx, VC33, C54xx, C55xx, C62xx, C67xx, C64xx, DM64x, C643x, DM64xx, DM270, DM320, DM35x, C64+ as well as the latest CPU emulator of the DaVinci™ series.
Key Features – XDS510+ USB Plus JTAG Emulator
•High-speed anti-jamming cable
•Supports CCS IDE V2.2/ 3.1/ 3.3/ C3X-4X/CCS4.x and up to CCS5.1
•Dedicated, durable JTAG plug
•LEDs indicate operational status
The XDS510 plus emulator is a DSP development tool (DSP emulator) which uses XDS560 JTAG technology to greatly improve its stability and anti-interference capabilities. The emulator fully supports Code Composer Studio version 2.2 to CCS 4.0 and the latest DaVinci™ platforms from Texas Instruments. The emulator uses 560 JTAG POD simulation techniques and conducts full space emulation. It is equipped with USB 2.0 and 14-pin JTAG interfaces and runs under operating systems from Windows 2000 to Windows 7. The emulator supports the following TI DSPs: LF24xx, F28xx, VC33, C54xx, C55xx, C62xx, C67xx, C64xx, DM64x, C643x, DM64xx, DM270, DM320, DM35x, C64+ as well as the latest CPU emulator of the DaVinci™ series.
Key Features – XDS510+ USB Plus JTAG Emulator
•High-speed anti-jamming cable
•Supports CCS IDE V2.2/ 3.1/ 3.3/ C3X-4X/CCS4.x and up to CCS5.1
•Dedicated, durable JTAG plug
•LEDs indicate operational status
