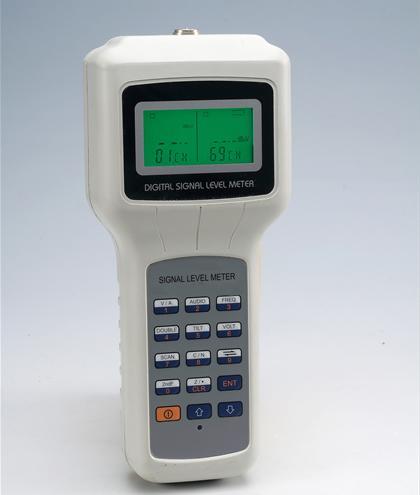

Overview – Handheld Signal Level Meter
This handheld signal level meter is specially designed and manufactured for CATV system installation and testing. It tests CATV signal levels in both channel and frequency modes and measures CATV TILT, C/N and trunk cable voltage effectively and accurately. This signal level meter is able to scan 125 channels at the same time and has the ability to display two channels simultaneously.

Key Features – Handheld Signal Level Meter
•Tests CATV signal levels in both channel and frequency modes
•Displays two channels simultaneously
•High-speed measurement
•Portable, rugged and handheld design
•Simple operation
•Auto-off time setup
•Large TN LCD screen with backlight

Technical Specifications – Handheld Signal Level Meter

Frequency Range
46 MHz to 870 MHz

Resolution Bandwidth
280 kHz ± 50 kHz

Level Range
30 dBμV to 120 dBμV

Accuracy
±1.5 dBμV (Indoor temperature); ±2.5 dBμV (-10 °C to 40 °C)

Input Impedance
75 Ω (BNC or F connector)
