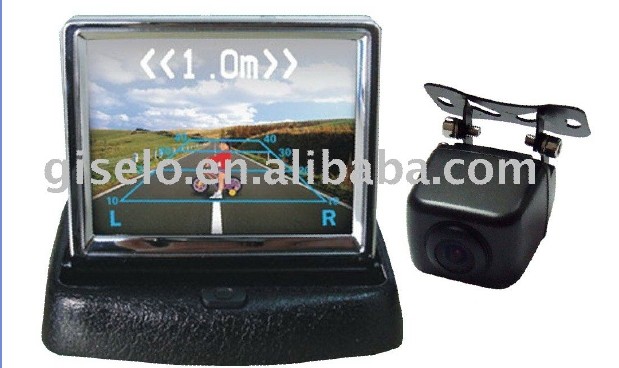

3.5 inch TFT LCD back view parking sensor/rear view parking sensor/car camera parking sensor
Product ID: 358660
Send Inquiry
Foldaway Monitor
Display: 3.5inch Digital TFT LCD
Display Format: 4:3
Power : ≤4W
Power Supply: DC12V
Video: 2AV input cauto switch when reversing.(Auto power on when detect AV signal)
Systme: PAL/NTSC auto switch
Contrast: 350:1
Pixel: 960*240
Installation: install on the dashboard.
Car camera:
Image Device: CMOS (OV7950:1/4" lens format)
TV System: NTSC
Effective Pixels: 656 x 492 pixels(NTSC)
Sensing Area: 4.08mm x 3.12mm
Resolution: 420TV lines
Minimum Illumination: 0.01Lux
Line(rule) sign direct parking
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
White Balance: Auto
S/N Ratio: Better than 48dB
Electronic Shutter: (N)1/60-1/100000 (P)1/50-1/100000
Power Supply: DC12V
Operating Temperature: -40 to +80 RH95%Max
View Angle: 170°
OmniPixel technology for low-light performance
Qualified in accordance with ACE-Q100
Display: 3.5inch Digital TFT LCD
Display Format: 4:3
Power : ≤4W
Power Supply: DC12V
Video: 2AV input cauto switch when reversing.(Auto power on when detect AV signal)
Systme: PAL/NTSC auto switch
Contrast: 350:1
Pixel: 960*240
Installation: install on the dashboard.
Car camera:
Image Device: CMOS (OV7950:1/4" lens format)
TV System: NTSC
Effective Pixels: 656 x 492 pixels(NTSC)
Sensing Area: 4.08mm x 3.12mm
Resolution: 420TV lines
Minimum Illumination: 0.01Lux
Line(rule) sign direct parking
Video Output: 1.0vp-p, 75Ohm
Gamma Consumption: 0.45
White Balance: Auto
S/N Ratio: Better than 48dB
Electronic Shutter: (N)1/60-1/100000 (P)1/50-1/100000
Power Supply: DC12V
Operating Temperature: -40 to +80 RH95%Max
View Angle: 170°
OmniPixel technology for low-light performance
Qualified in accordance with ACE-Q100
