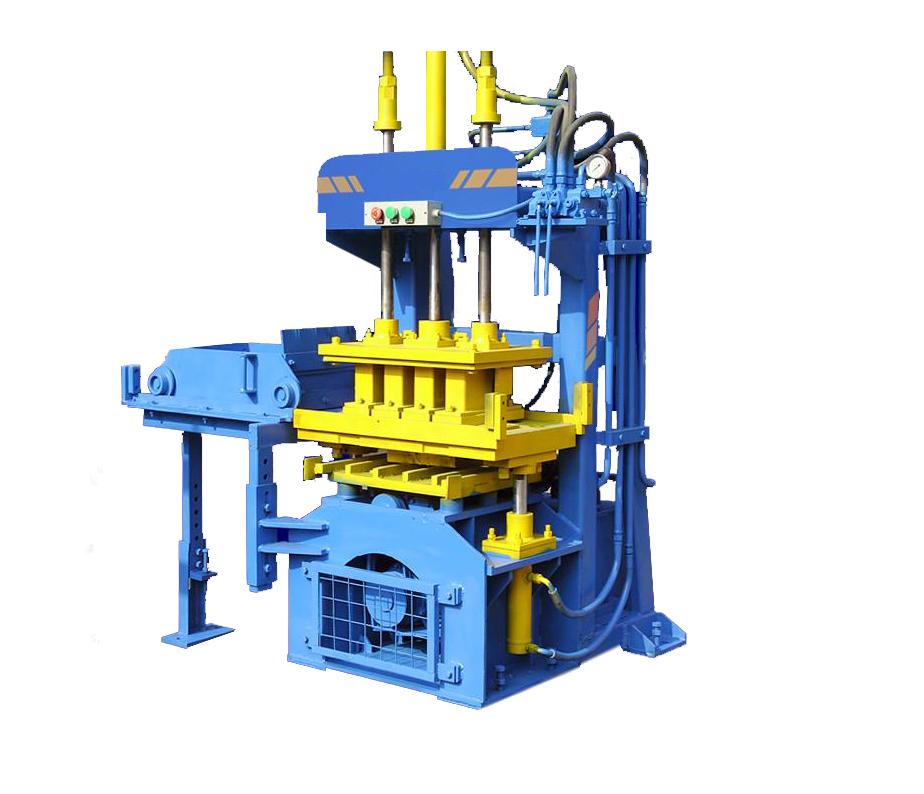

Simple operated ,easy maintenance,high capacity paving block machine
Product ID: JW-QTY2-20
Send Inquiry
interlock block machine
1.Capacity:8640 pcs/Day
2.Molding cycle:15~20S
3.Gross power:6.2 KW
4.ISO9001:2000 5.sells well
Method: Hydraulic Pressure
Automatic: Yes. Semi-automatic
Place of Origin: China>>Hunan
Brand Name: Golden Bay Machinery
Model Number: JW-QTY2-20
Field Areas required: 1,500 m2 ~3,000 m2.
Operating workers required: Four to Five ones
Capacity: 8,640 pieces/Day ( 8 hours a day ) ( Paver blocks )
Pallet size: 550×500×20-40 mm Can use different Moulds in sizes to produce different blocks.
Molding cycle: 15~20 Seconds
Power Resource: 3 P, 380 V±10% , 50 Hz
Gross power: 6.2 KW
The weight of main machine: 1 Ton
Outline dimension of the Main Machine: 1800*1160*2320 mm
Control mode: Semi-automatic
Hydraulic Tank Capacity: 83 L
Max System Pressure: 6-10 MPa
1.Capacity:8640 pcs/Day
2.Molding cycle:15~20S
3.Gross power:6.2 KW
4.ISO9001:2000 5.sells well
Method: Hydraulic Pressure
Automatic: Yes. Semi-automatic
Place of Origin: China>>Hunan
Brand Name: Golden Bay Machinery
Model Number: JW-QTY2-20
Field Areas required: 1,500 m2 ~3,000 m2.
Operating workers required: Four to Five ones
Capacity: 8,640 pieces/Day ( 8 hours a day ) ( Paver blocks )
Pallet size: 550×500×20-40 mm Can use different Moulds in sizes to produce different blocks.
Molding cycle: 15~20 Seconds
Power Resource: 3 P, 380 V±10% , 50 Hz
Gross power: 6.2 KW
The weight of main machine: 1 Ton
Outline dimension of the Main Machine: 1800*1160*2320 mm
Control mode: Semi-automatic
Hydraulic Tank Capacity: 83 L
Max System Pressure: 6-10 MPa
