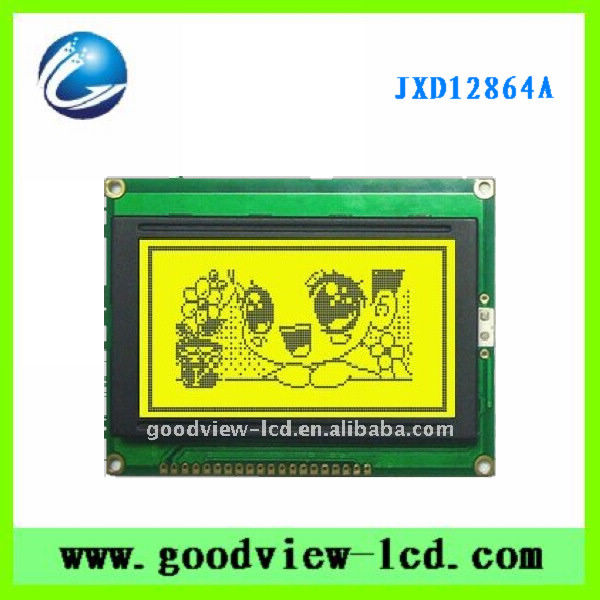

128*64 graphic matrix dots lcd display module
KS0107 Controller 128*64A Yellow-Green LCD
Display Format：128*64Lcd Type：JXD12864A
Module size ：93.0X70.0X13.0MM,
Area ：72.0X40.0 MM,Dot size:0.48WX0.48 H
Dot pitch ：0.52x0.52 mm
Operating Voltage ：5.0V or 3.0V
driver：KS0107/ KS0108
Colour of backlight ：Yellow-Green ；
Lcd Type ：Yellow STN ,Positive
Port :20 Single-row Interface.
Operating Temperature ：-10----+60 or -20—+70
Storage Temperature ：-20—+70 or -30-----+80
COB Connector 6 oclock

We can design and manufacture the panel of TN LCD Module, STN LCD Module, FSTN LCD Module, characters LCD Module,Graphic Dot matrix LCD Module,led backlight LCD Module,and some other special types, as well as the COB LCD Module, COF LCD Module, TAB LCD Module and COG LCD Module.

Welcome to contact paul(at)goodview-lcd.com for quotation or free samples.YOUR ENQUIRY WITH YOUR BUSINESS EMAIL ADDRESS IS APPRECIAED! AND WILL BE REPLIED TIMELY AND DIRECTLY.
Customers specifications are welcome!
