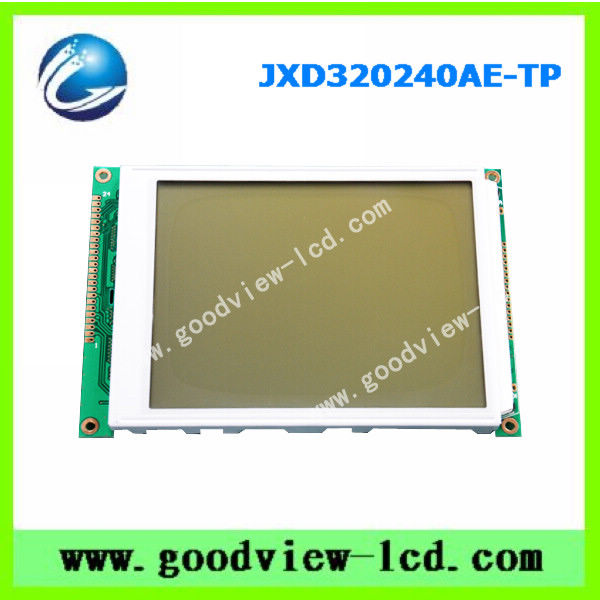

320*240 graphic lcd display yellow green module
RA8835AP3N/RA8835P3N Controller 320*240AE-Tp Positive Fstn LCD
Display Format：320*240Lcd Type：JXD320240AE-TPModule size ：160.0X109.0X13.0TMM,Area :122.0X92.0 MM,Dot size ：0.33WX0.33 H ,Dot pitch ：0.36x0.36 mm
Operating Voltage:5.0V or 3.0V,Controller:RA8835AP3N Or RA8835P3N,driver:RA0086A
Colour of backlight:White,
Lcd Type:Positive FSTN ,Positive
Port:20 Single-row Interface（No-Tp）or 24 Single-row Interface(Add-Tp)
Operating Temperature ： -20—+70
Storage Temperature ： -30-----+80
COB Connector 6 oclock
We can design and manufacture the panel of TN LCD Module, STN LCD Module, FSTN LCD Module, characters LCD Module,Graphic Dot matrix LCD Module,led backlight LCD Module,and some other special types, as well as the COB LCD Module, COF LCD Module, TAB LCD Module and COG LCD Module.
Welcome to contact paul(at)goodview-lcd.com for quotation or free samples.YOUR ENQUIRY WITH YOUR BUSINESS EMAIL ADDRESS IS APPRECIAED! AND WILL BE REPLIED TIMELY AND DIRECTLY.
Display Format：320*240Lcd Type：JXD320240AE-TPModule size ：160.0X109.0X13.0TMM,Area :122.0X92.0 MM,Dot size ：0.33WX0.33 H ,Dot pitch ：0.36x0.36 mm
Operating Voltage:5.0V or 3.0V,Controller:RA8835AP3N Or RA8835P3N,driver:RA0086A
Colour of backlight:White,
Lcd Type:Positive FSTN ,Positive
Port:20 Single-row Interface（No-Tp）or 24 Single-row Interface(Add-Tp)
Operating Temperature ： -20—+70
Storage Temperature ： -30-----+80
COB Connector 6 oclock
We can design and manufacture the panel of TN LCD Module, STN LCD Module, FSTN LCD Module, characters LCD Module,Graphic Dot matrix LCD Module,led backlight LCD Module,and some other special types, as well as the COB LCD Module, COF LCD Module, TAB LCD Module and COG LCD Module.
Welcome to contact paul(at)goodview-lcd.com for quotation or free samples.YOUR ENQUIRY WITH YOUR BUSINESS EMAIL ADDRESS IS APPRECIAED! AND WILL BE REPLIED TIMELY AND DIRECTLY.
Certificate
- ISO
- CE
Main Products
lcd display module,tn/stn/fstn lcd,COB/COG lcd display,tft lcd module
