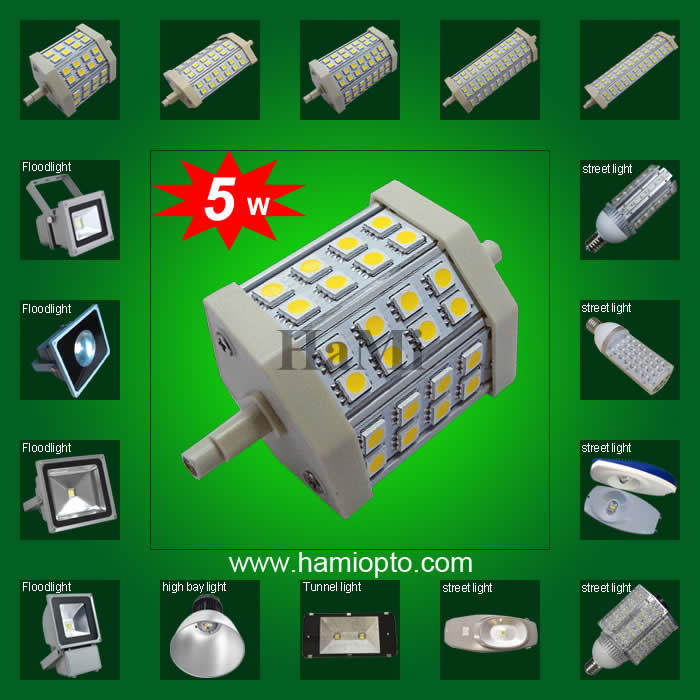

1. led R7S,China led R7S,
2. Power:5w led R7S,
3. Power optional:5w,8w,10w,13w,15w,
4. Isolated Driver,Rubycon Capicity,
5. Ideal for flood light, replace a halogen 78mm R7S type lamp,
6, Design dimmable available,
Model Number HM-R7S-5W
Power 5W
Housing Material: Lathe Aluminum
LED Quantity: 24PCS
LED Type: SMD 5050
Luminous flux 430-440lm
Input voltage AC 85-265V
Color temperature 2800-3000/4000-4500/5500-6500K
Color rendering index: 75-80%
Socket available: R7S
Frequency: 50-60HZ
Size: Dia 54 *H 78 (mm)
Beam Angle: 200°
Humidity: 0-95% non-condensing humidity
Ambient temperature: -40°-50°
Working Life: 50000h
Net Weight: 60g
Certificates: CE & ROHS
Warranty: 3 years
R7S LED Light Features:
1,Ideal for flood light. Replace a halogen 78mm R7S type lamp.
2,Extruded aluminum material crust good for heat dissipation
3,Constant voltage source and constant current source LED drive
4,NO shadow and shatter-resistant, Beam angle as widely as 200°,
5,Only 65°C for surface temperature with multiple heat dissipation
6,High brightness of Epistar SMD, more than85% efficiency
7. Easy to install and maintain
8. Long lifespan, low cost of maintenance
R7S LED Light Main Application:
1. Architectural decorative light.
2. Archway, Canopy and bridge edge light.
3. Amusement park, theater and aircraft cabin mood light.
R7S LED Light Testing process:
1,We purchase the raw materials of the R7S LED Lamp from foreign well-known brand suppliers
2,Finished R7S LED Lamp must be made 1000 times on-off test firstly, then go on aging test for 48 hours. Through these two steps strict test, ensure all the R7S LED Lamp meet the quality standard.
3,The R7S LED Lamp must be tested under a series of bad condition, including the highest temperature 150°C and the lowest temperature -40°C
R7S LED Light Usage Notice:
1,No ballast need, Any ballast should be removed before installation
2,The R7S Led LAMP is not water-proof
3,The socket temperature peak is 65°C,do not touch the aluminum or any part while working
2. Power:5w led R7S,
3. Power optional:5w,8w,10w,13w,15w,
4. Isolated Driver,Rubycon Capicity,
5. Ideal for flood light, replace a halogen 78mm R7S type lamp,
6, Design dimmable available,
Model Number HM-R7S-5W
Power 5W
Housing Material: Lathe Aluminum
LED Quantity: 24PCS
LED Type: SMD 5050
Luminous flux 430-440lm
Input voltage AC 85-265V
Color temperature 2800-3000/4000-4500/5500-6500K
Color rendering index: 75-80%
Socket available: R7S
Frequency: 50-60HZ
Size: Dia 54 *H 78 (mm)
Beam Angle: 200°
Humidity: 0-95% non-condensing humidity
Ambient temperature: -40°-50°
Working Life: 50000h
Net Weight: 60g
Certificates: CE & ROHS
Warranty: 3 years
R7S LED Light Features:
1,Ideal for flood light. Replace a halogen 78mm R7S type lamp.
2,Extruded aluminum material crust good for heat dissipation
3,Constant voltage source and constant current source LED drive
4,NO shadow and shatter-resistant, Beam angle as widely as 200°,
5,Only 65°C for surface temperature with multiple heat dissipation
6,High brightness of Epistar SMD, more than85% efficiency
7. Easy to install and maintain
8. Long lifespan, low cost of maintenance
R7S LED Light Main Application:
1. Architectural decorative light.
2. Archway, Canopy and bridge edge light.
3. Amusement park, theater and aircraft cabin mood light.
R7S LED Light Testing process:
1,We purchase the raw materials of the R7S LED Lamp from foreign well-known brand suppliers
2,Finished R7S LED Lamp must be made 1000 times on-off test firstly, then go on aging test for 48 hours. Through these two steps strict test, ensure all the R7S LED Lamp meet the quality standard.
3,The R7S LED Lamp must be tested under a series of bad condition, including the highest temperature 150°C and the lowest temperature -40°C
R7S LED Light Usage Notice:
1,No ballast need, Any ballast should be removed before installation
2,The R7S Led LAMP is not water-proof
3,The socket temperature peak is 65°C,do not touch the aluminum or any part while working
