A static mixer is a precision engineered device for the continuous mixing of fluid materials. Normally the fluids to be mixed are liquid, but static mixers can also be used to mix gas streams, disperse gas into liquid or blend immiscible liquids. The energy needed for mixing comes from a loss in pressure as fluids flow through the static mixer. One design of static mixer is the plate-type mixer and the other device consists of mixer elements contained in a cylindrical (tube) or squared housing. Mixer size can vary from about 6 mm to 6 meters diameter. Typical construction materials for static mixer components included stainless steel, polypropylene, Teflon, PVDF, PVC, CPVC and polyacetal.
Design
In the plate type design mixing is accomplished through intense turbulence in the flow.

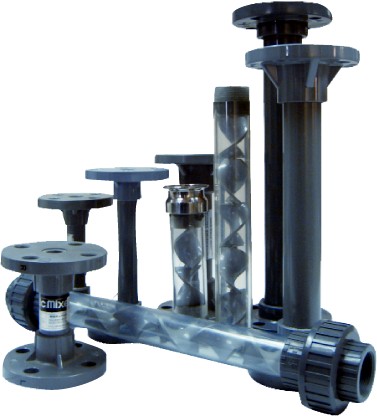

In the housed-elements design the static mixer elements consist of a series of baffles made of metal or a variety of plastics. Similarly, the mixer housing can be made of metal or plastic. The housed-ele
