1. QY Operation parameters :
(1). Flow range: 10~100 m3/h;
(2). Head range:5~54 m;
(3). Diameter scope:φ51~φ152mm;
(4). Temperature range: ≤40 centidegree.

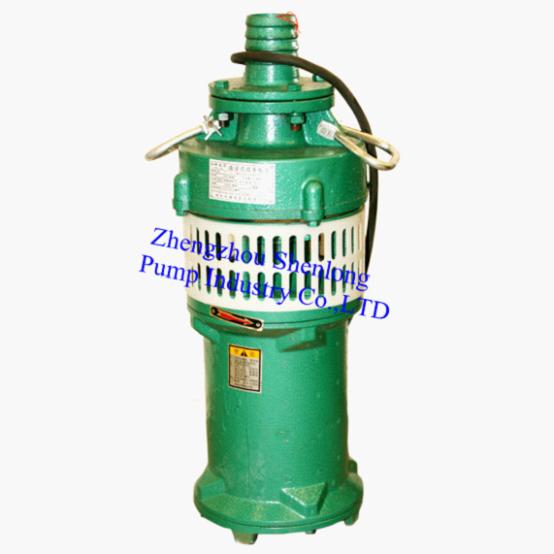

2. Product overview :
QY submersible pumps are widely used in agriculture irrigation, sprinkler irrigation, well water lifting and the water supply, drain system of industrial and civil building, as well as the hill, mountain areas water diversion, drainage of low-lying area, water supply, drainage of industrial and mining enterprises in urban and rural area and all the other water facilities.
3. Technical parameters:


Model
Rated flow
(m3/h)
Rated head
(m) Rated power
(kw) Synchronous speed
(r/min) Rated current
(A) Rated voltage
(V) Weight
(kg)
QY10-36-2.2 10 36 2.2 3000 5.4 380 45
QY15-36-3 15 36 3 3000 7.16 380 49
QY40-21-4 40 21 4 3000 9.31 380 50
QY40-28-5.5 10 28 5.5 3000 12.64 380 86

4. QY using condition
Submersible pump submerge into the depth of no more than 5 m , less than 40 centidegree water temperature; Water content of sand or water volume ratio of insoluble solid particles no more than 0.1%, particle size no greater than 0.2mm; no corrosion , water PH value is 6.5 ~ 8.5, such as general room temperature water, well water, river water, lake water.
