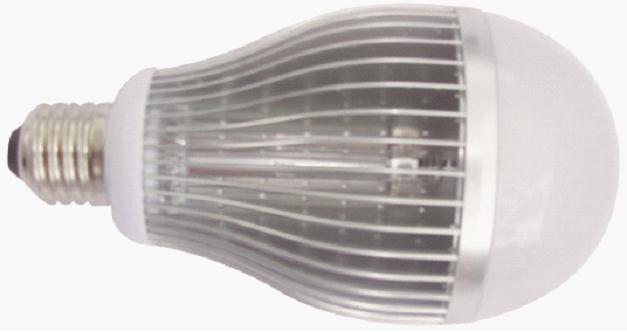

16w bulb adopt super bright led,the luminous flux can reach 1100lm. The housing is heat-sinking aluminium, and cover is an acrylic cover. Base is E27/B22.The dimension is Φ77×150mm.Broad range voltage input from AC175-245V. It own certificates including CE as well as RoHS and it is very popular in the market .
Monochrome technical parameters:
Item Mark Value Unit
Current I 77(work current) mA
Power P 16 W
Led qty Pcs 50（2835) Pcs
Luminous flux lm 1100 lm
Diameter Φ 77 mm
Height H 150 mm
Operating Temperature TOPR -20-50 ℃
Storage Temperature TOPR -20---80 ℃
Voltage VOLT AC175-245V V
Waterproof Level IP IP50 IP
Material PCB Aluminum /
Lifespan HOUR 35000 HOUR
Power Factor PF 0.9 /
Power efficiency η 0.9 /
Color Temperature CCT 3000k-6000k /
CRI(Ra≥) / 80 /
Warranty: YEAR 3 YEAR
Monochrome technical parameters:
Item Mark Value Unit
Current I 77(work current) mA
Power P 16 W
Led qty Pcs 50（2835) Pcs
Luminous flux lm 1100 lm
Diameter Φ 77 mm
Height H 150 mm
Operating Temperature TOPR -20-50 ℃
Storage Temperature TOPR -20---80 ℃
Voltage VOLT AC175-245V V
Waterproof Level IP IP50 IP
Material PCB Aluminum /
Lifespan HOUR 35000 HOUR
Power Factor PF 0.9 /
Power efficiency η 0.9 /
Color Temperature CCT 3000k-6000k /
CRI(Ra≥) / 80 /
Warranty: YEAR 3 YEAR
Certificate
- CE
- Rohs
