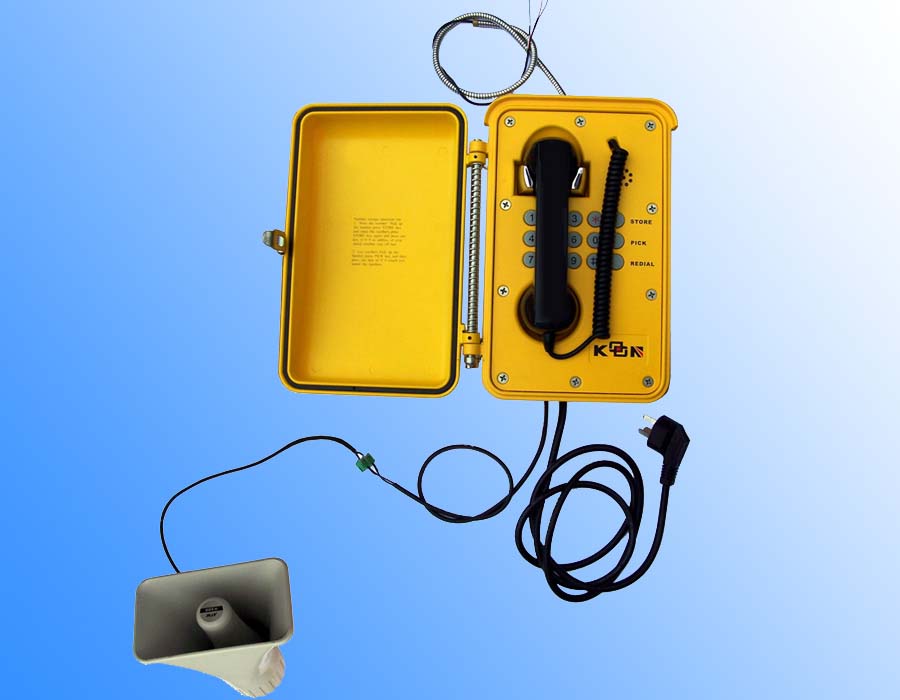

Auto dial,waterproof,acidproof,emergency sos call,IP66,CE
Auto-dial weatherproof phone
The Weatherproof phone will be designed to work on Railway, metro, tunnel, etc. Housed in robust aluminium die case with spring loaded door, it will offer protection against the outdoor environment, vandals resistance and rot resistance.
The unit will meet all the latest European/UK standards for EMC and US FCC, telephony, waterproofing IP66, and lightening protection together with offering the level of performance and reliability demanded in such an environment.
*Remote testing programmable optional
*DTMF(Dual Tone Multi Frequency)
*Matching with most PABX, PBX and PAX systems.
Main features:
1、Cabinet：aluminum alloy die－casting，high anti-violent, able to glisten, convenient for looking for.
2、Without keypad, auto-dial phone.
3、Door cover：orient automatically and good self－closing，convenient for use.
4、Handset：made of special engineering plastic，high anti-knock resistance、high tensile strength resistance and high anti-violent.
5、All of the components including handset telephone receiver and transmitter，buzzer，circuit board and cabinet are designed to be multi－layer waterproof and dust－proof which is up to Class III grade. The whole machine is up to national standard GB4208-93 IP 66.
6、Phone is provided with high stability，high anti-jamming capability，and it is up to national standard GB/T 15279-94.
SPECIFICATION：
1、Applicable for various types of SPC exchange and dispatching exchange system with feeding voltage of 48-60V.
2、Ambient temperature:-30℃~75℃ Relative humidity:10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise:≤ 60dB（A）
3、Sound level of ringing：≥70dB（A）.
4、Standard frequency：low frequency group：697、770、852、941Hz,
high frequency group：1209、1336、1477Hz, frequency deviation：≤±1.5%
If service line is a 3Km signal－level：
Standard frequency：low frequency group：-9dB±3dB，high frequency group：-7dB±3dB，level difference between low and high frequency of compound signal：2±1dB，the total distortion caused by intermodulation of harmonic wave is lower than the basic level by at least 20dB.
5、Call transmission index：(5KM)SLR≤12,RLR≤-1,STMR≥10, output impedance is 600Ω.
Certification:
EMC:
EN55022:2006 emissions
EN55024:1998 + A1:2001 immunity
Transients/Lightning
ITU-T recommendations K.21 (07/2003)
Ingress Protection:
GB4208-93
IP66
FCC
The Weatherproof phone will be designed to work on Railway, metro, tunnel, etc. Housed in robust aluminium die case with spring loaded door, it will offer protection against the outdoor environment, vandals resistance and rot resistance.
The unit will meet all the latest European/UK standards for EMC and US FCC, telephony, waterproofing IP66, and lightening protection together with offering the level of performance and reliability demanded in such an environment.
*Remote testing programmable optional
*DTMF(Dual Tone Multi Frequency)
*Matching with most PABX, PBX and PAX systems.
Main features:
1、Cabinet：aluminum alloy die－casting，high anti-violent, able to glisten, convenient for looking for.
2、Without keypad, auto-dial phone.
3、Door cover：orient automatically and good self－closing，convenient for use.
4、Handset：made of special engineering plastic，high anti-knock resistance、high tensile strength resistance and high anti-violent.
5、All of the components including handset telephone receiver and transmitter，buzzer，circuit board and cabinet are designed to be multi－layer waterproof and dust－proof which is up to Class III grade. The whole machine is up to national standard GB4208-93 IP 66.
6、Phone is provided with high stability，high anti-jamming capability，and it is up to national standard GB/T 15279-94.
SPECIFICATION：
1、Applicable for various types of SPC exchange and dispatching exchange system with feeding voltage of 48-60V.
2、Ambient temperature:-30℃~75℃ Relative humidity:10%~95%
Atmospheric pressure: 86~106Kpa Circumstance noise:≤ 60dB（A）
3、Sound level of ringing：≥70dB（A）.
4、Standard frequency：low frequency group：697、770、852、941Hz,
high frequency group：1209、1336、1477Hz, frequency deviation：≤±1.5%
If service line is a 3Km signal－level：
Standard frequency：low frequency group：-9dB±3dB，high frequency group：-7dB±3dB，level difference between low and high frequency of compound signal：2±1dB，the total distortion caused by intermodulation of harmonic wave is lower than the basic level by at least 20dB.
5、Call transmission index：(5KM)SLR≤12,RLR≤-1,STMR≥10, output impedance is 600Ω.
Certification:
EMC:
EN55022:2006 emissions
EN55024:1998 + A1:2001 immunity
Transients/Lightning
ITU-T recommendations K.21 (07/2003)
Ingress Protection:
GB4208-93
IP66
FCC
Certificate
- CE/FCC/RoHS/IP66/IP67/ Patent/Comfirm by MII
