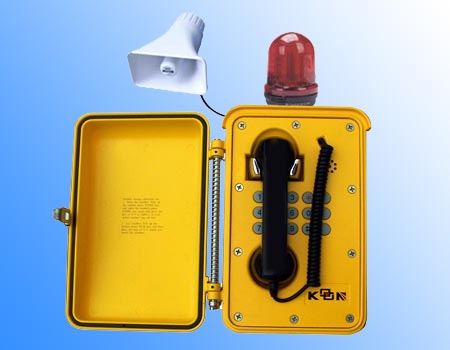

weatherproof industrial phone with a loud speaker and lamp,three colors
Loud speaking lighting weatherproof telephone
*The Weatherproof phone will be designed to work on Railway, metro, tunnel, etc. Housed in robust aluminum die case with spring loaded door, it will offer protection against the outdoor environment and vandals.
*The unit will meet all the latest European/UK standards for EMC and US FCC, telephony, waterproofing IP66, and lightening protection together with offering the level of performance and reliability demanded in such an environment.
*Matching with most PABX, PBX and PAX systems.
Applications:
As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box,Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities….
A good ideal telephone for use in wet or corrosive atmospheres
Main Product features
1. Robust aluminum alloy die-cast body, Vandal resistant and tamper-resistant hardware, and simple installation.
2. Full keypad, hand-free.
3. Door cover: orient automatically and good self - closing, convenient for use.
4. Weather resistant to IP66 standard, service temperature range from:-30℃ to +75℃
5. Magnetic reed hook-switch
7. Robust AC cord, AC power supply from 110V~240V.
8. Lightening protection to ITU-T recommendation K.21
9. Phone integrity wiring to enable the telephone system to check if the telephone unit is still operational.
10.Selectable 7 minutes time out, to release the line if the handset is left off hook.
11.Phone is provided with high stability, high anti-jamming capability standard to GB/T 15279-94.
12.The phone will stop the line (release the line) when the other side cut off the line.
13.Ingress Protection: GB4208-93 IP66 EMC: EN55022/EN55024/EN50121-3-2:2006 FCC
Packing:
1pcs in each inner CTN box, size: 53.3 x 27.6 x 19.1 G.W: 11kg
4pcs in outer CTN box, size: 59 x 48 x 49 G.W: 44kg
20GP: 800PCS
40GP: 1600PCS
40HQ: 1800PCS
*The Weatherproof phone will be designed to work on Railway, metro, tunnel, etc. Housed in robust aluminum die case with spring loaded door, it will offer protection against the outdoor environment and vandals.
*The unit will meet all the latest European/UK standards for EMC and US FCC, telephony, waterproofing IP66, and lightening protection together with offering the level of performance and reliability demanded in such an environment.
*Matching with most PABX, PBX and PAX systems.
Applications:
As Public telephone for indoor or outdoor, Taxi or bus stands or station, Highway call box,Railway, metro, ATM machines side, Tunnel, Port, Dock, Mines, Generation facilities….
A good ideal telephone for use in wet or corrosive atmospheres
Main Product features
1. Robust aluminum alloy die-cast body, Vandal resistant and tamper-resistant hardware, and simple installation.
2. Full keypad, hand-free.
3. Door cover: orient automatically and good self - closing, convenient for use.
4. Weather resistant to IP66 standard, service temperature range from:-30℃ to +75℃
5. Magnetic reed hook-switch
7. Robust AC cord, AC power supply from 110V~240V.
8. Lightening protection to ITU-T recommendation K.21
9. Phone integrity wiring to enable the telephone system to check if the telephone unit is still operational.
10.Selectable 7 minutes time out, to release the line if the handset is left off hook.
11.Phone is provided with high stability, high anti-jamming capability standard to GB/T 15279-94.
12.The phone will stop the line (release the line) when the other side cut off the line.
13.Ingress Protection: GB4208-93 IP66 EMC: EN55022/EN55024/EN50121-3-2:2006 FCC
Packing:
1pcs in each inner CTN box, size: 53.3 x 27.6 x 19.1 G.W: 11kg
4pcs in outer CTN box, size: 59 x 48 x 49 G.W: 44kg
20GP: 800PCS
40GP: 1600PCS
40HQ: 1800PCS
Certificate
- CE/FCC/RoHS/IP66/ Patent/Comfirm by MII/EMC/EN55022:2006 / EN55024:1998 + A1:2001 /ITU-T /GB4208-93
