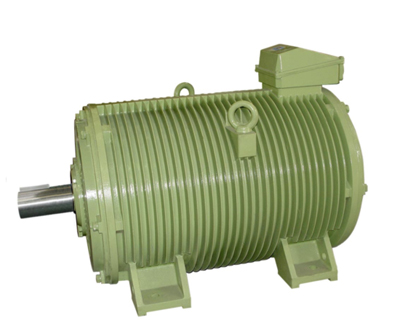

YGP series VVVF adjustable speed motors for roller table are high reliable VVVF adjustable speed motors. It designed with VVVF adjustable speed inverter to drive roller table for metallurgy industry. This motor series have high overload capacity, high mechanical intensity, wide adjustable speed range, the motors can be used in not only continual operation transfer roller, but also the working roller of interrupted duty with starting, braking, inverse frequently.
Basic mode:
Rated voltage: 380V
Protection Class: IP54/IP55 insulation class: F or H
Cooling mode: IC410
Base operating duty: S1
Install mode: B3(112~400)B5(112~250)V1(112~250)
Junction box location: H112-225 at left side of seat from drive end view. H250-400 at the top of no drive seat.
Note: The following are optional: Over-temperature protection, damp proof heating belt, brake, rotary encoder, over-speed switch.
We can produce it according to your requirements!
Basic mode:
Rated voltage: 380V
Protection Class: IP54/IP55 insulation class: F or H
Cooling mode: IC410
Base operating duty: S1
Install mode: B3(112~400)B5(112~250)V1(112~250)
Junction box location: H112-225 at left side of seat from drive end view. H250-400 at the top of no drive seat.
Note: The following are optional: Over-temperature protection, damp proof heating belt, brake, rotary encoder, over-speed switch.
We can produce it according to your requirements!
