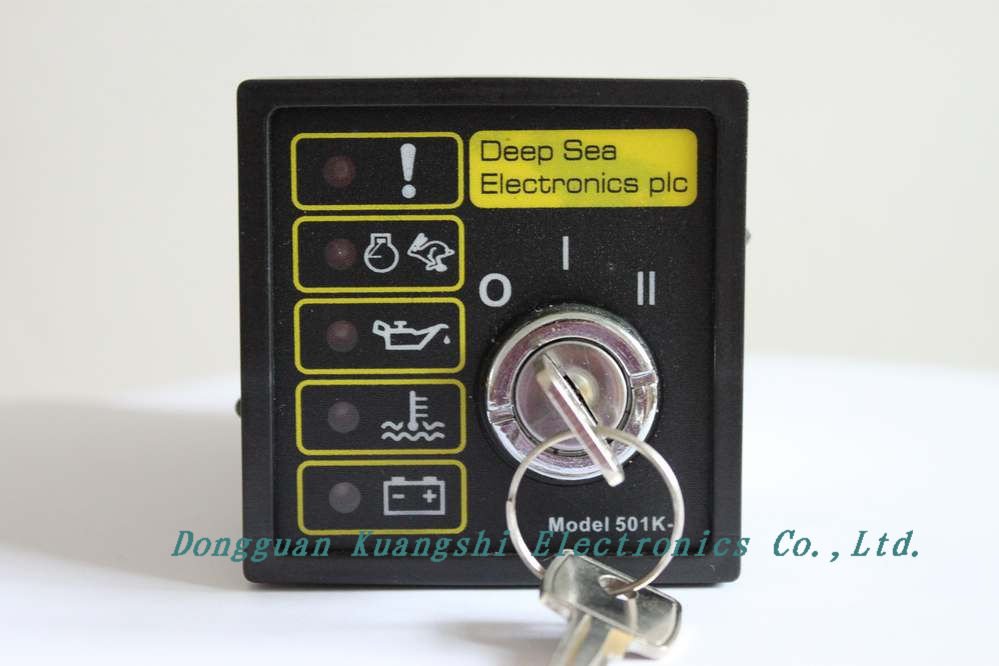

Controller DSE501K
Function characteristics:
The engine start control mode of manual basic type, through panel key control the engine start and stop, and has low oil pressure, high water temperature, fault protection function and LED indicator corresponding speeding and auxiliary input.
Specification for DC power supply:
9 t to 33 V continuous
When starting voltage drop:
Can automatically start the sustain voltage, can make do not need the built-in battery
The generator input range:
15 - 305 V AC true RMS value
Generator input frequency:
50 - 60 Hz at rated engine speed.
The magnetic sensor input range:
0.5 V to + / - 80 V
Magnetic input
Frequency: 2300Hz to 6000 H at rated engine speed
Start relay output:
16 Amp DC voltage in the system.
Run relay output:
16 Amp DC voltage in the system.
Alarm output:
1 Amp DC voltage in the system.
Size:
72 X 72 X 118.5 (not including the key switch)
Operating
