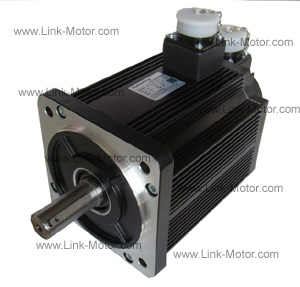

AS130-25-150E25
Rated Power (KW) : 3.8
Rated Voltage (V) : 220
Rated Current (A) : 13.5
Rated Speed (RPM) : 2500
Rated Torque (N.m) : 15
Peak Torque (N.m) : 30
Peak Current (A) : 27
Voltage Constant
(V/1000r/min) : 67
Torque Coefficient (N.m/A): 1.11
Rotor Inertia (Kg.m2): 2.77×10-3
Resistance (Ω) : 0.49
Inductance (mH) : 1.68
Electrical Time
Constant (ms) : 3.43
Weight (Kg) : 14.4
Encoder Resolution (PPR): 2500
Body Length (L, mm) : 231
Order this item at our e-store:http://www.link-motor.com/views.asp?hw_id=92
Find more at our official online shop: www.Link-Motor.com
Rated Voltage (V) : 220
Rated Current (A) : 13.5
Rated Speed (RPM) : 2500
Rated Torque (N.m) : 15
Peak Torque (N.m) : 30
Peak Current (A) : 27
Voltage Constant
(V/1000r/min) : 67
Torque Coefficient (N.m/A): 1.11
Rotor Inertia (Kg.m2): 2.77×10-3
Resistance (Ω) : 0.49
Inductance (mH) : 1.68
Electrical Time
Constant (ms) : 3.43
Weight (Kg) : 14.4
Encoder Resolution (PPR): 2500
Body Length (L, mm) : 231
Order this item at our e-store:http://www.link-motor.com/views.asp?hw_id=92
Find more at our official online shop: www.Link-Motor.com
