LED DMX driver RGB
1.DC5V-24V,5A/CH/*3
2.work with DMX console to adjust the changing modes
3.256 grey levels
4.6A/CH*3

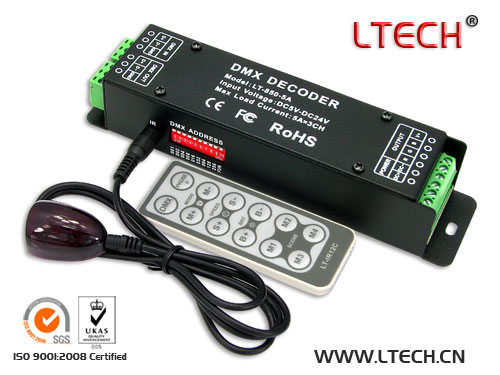

LED DMX512 decoder with IR remote control
1.LT--830 Decoder is designed via advanced microchip technology to convert the universal standard DMX512/1990 signal into analog signal,
2.it allows user to choose 1~3 output channel, 256-level brightness control, max 512 output channels.
3.This compact decoder connects to light console, analog device and various Led terminal products such as RGB Led lamps, RGB Led tubes, building lamps, LED wall washers or lighting and other compatible devices allowing its user to create endless possibilities of light shows.
Input voltage DC5V~DC24V
Max load current 6A/CH×3 Max 9A
Max output power 90W/216W/432W(5V/12V/24V)
Output gray scale 16bit/CH
Input signal DMX512/1990
Output signal 3 constant voltage channels
working temperature -30°C~65°C
Dimension L125×W52×H40mm
Pac
1.DC5V-24V,5A/CH/*3
2.work with DMX console to adjust the changing modes
3.256 grey levels
4.6A/CH*3
LED DMX512 decoder with IR remote control
1.LT--830 Decoder is designed via advanced microchip technology to convert the universal standard DMX512/1990 signal into analog signal,
2.it allows user to choose 1~3 output channel, 256-level brightness control, max 512 output channels.
3.This compact decoder connects to light console, analog device and various Led terminal products such as RGB Led lamps, RGB Led tubes, building lamps, LED wall washers or lighting and other compatible devices allowing its user to create endless possibilities of light shows.
Input voltage DC5V~DC24V
Max load current 6A/CH×3 Max 9A
Max output power 90W/216W/432W(5V/12V/24V)
Output gray scale 16bit/CH
Input signal DMX512/1990
Output signal 3 constant voltage channels
working temperature -30°C~65°C
Dimension L125×W52×H40mm
Pac
Certificate
- ISO
- CE
- FCC
- ROHS
