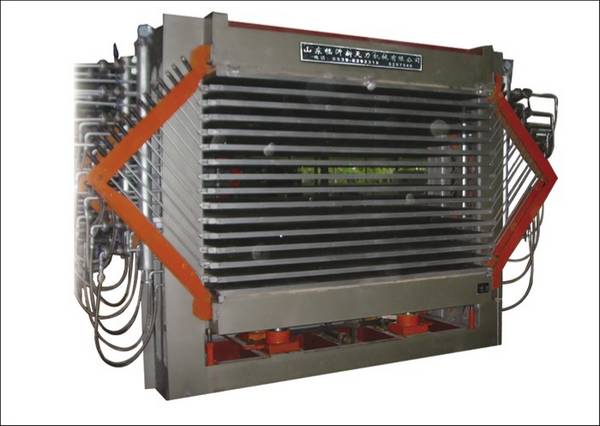

Model JGBY214×8/10-12Z
Nominal gross pressure 100KN
Direction of feeding plate Horizontal
Layer counting 12 layers
Distance between hot platens 70 mm
Numbers of hot platens 13 pcs
Size of hot platens 2700×1340×42mm
Numbers of cylinders 4 pcs
Diameter of cylinder Φ140 mm
Stroke of cylinder 840 mm
Pressurization ≤ 6.3Mpa
Empty closing time 15 s
Flowing speed of low pressure pump About 140 L/min
Power 11 kw
Machine weight About 24,500 Kg
