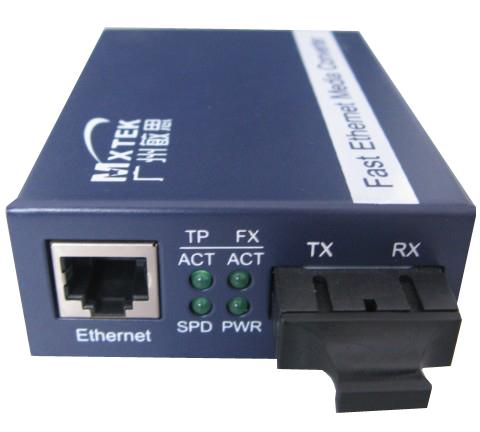

Single-mode Fiber Media Converter Description

The fiber media converter transform the transmission media of Ethernet signal from CAT5 to optical fiber,it can extend the transmission distance to serveral kilometers or hundred kilometers.Using media converter is a economical solution to achieve long distance transmission base on current status.

Single mode Fiber Media Converter Main Features

* Compliance with the standards of IEEE802.3, IEEE802.3u, IEEE802.3z
* Telecommunication operating standard, MTBF more than 100,000 hours
* Electric interface support 10/100/1000M Auto-Negotiation mode,Auto- MDI/MDIX
* High efficiency converting core built in, capacity of cache is 1Mbit, MAC capacity 1K, restrain broadcasting storm
* Support overlength package transmission, MAX 1552 Byte
* Support QoS, ensure VIOP package transmission rate
* Support STP, constitutes a redundant network
* Strict on the chosen of raw material and QC to ensure high quality and reliability of the products

Single mode Fiber Media Converter Technical Specifications

Fiber Interface

Interface Type: FC/SC/ST optional
Working Wavelength: Multi-Mode 850nm/1310nm
Single Mode 1310nm/1550nm
Transmission Distance: Multi-Mode 0-2Km
Single Mode 0-120Km

Ethernet Interface

Connector: RJ45
Connector Rate: 10/100M,full/half duplex auto-negotiation, auto-mdi/mdix
Max Frame Size: 1552Byte

Other Parameters

Input Voltage: AC100V~260V/50~60Hz
DC + 5V
DC -36 ~ 72V
Whole Power:
