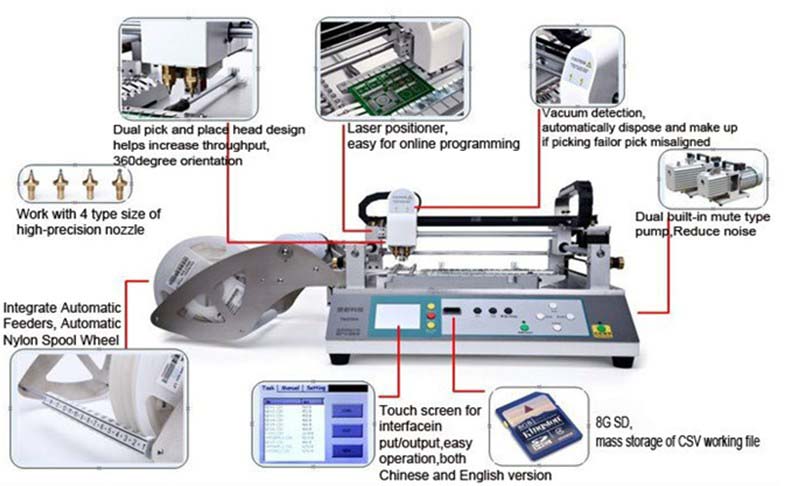

Version TM220A
Applicable PCB 20mm*20mm~220mm*200mm
Placement head quantity 2
Max mounting capability 7000PCS/h
Positioning accuracy ±0.025mm
Applicable Components 0402-5050,SOP, QFN, IC
Components supply configuration Tape reel, bulk package (IC)
Tape width 8mm, 12mm, 16mm
Feeders 16 (8mm=12, 12mm=2, 16mm=1, bulk IC=1)
External Dimension L 830mm×W 455mm×H 285mm
Vacuum pump -92KPA (Mute type pump)
Vacuum pump quantity 2 (Built-in)
Power supply 220V, 50Hz (Convertible to 110V)
Average working power 100W
Weight G.W: 45KG (N.W: 25KG)
Packing size L 101cm×W 61cm×H 48cm

1) Pick and Place Machine TM220A: 1
2) 4 types of nozzle: Totally 6 (XS—2, S—2, M—1, L—1).
3) 8G SD Card: 1
4) Card reader: 1
5) Nozzle disassembly tool: 1set
6) Adjustment tool for Nylon Spool Wheel: 1
7) Nozzle cleaning tool: 1 set
8) User manual: 1
9) Video training course: 1 set
10 PCB Coordinate file transformation tool: 1
