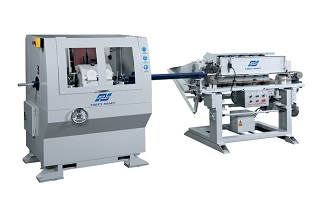

Heavy Duty Double Belt Centerless Round Tube Grinding Machine - Neo Mac
Product ID: MT-60RS-B2
Send Inquiry
Home > Products > Round Tube Grinding Machines > Heavy Duty Double Belt Centerless Round Tube Grinding Machine
Product Specifications
Type
MT-60RS-B2
1.Range of work diameter:ø10~ø60mm
2.Range of work length:300mm~Unlimited
3.Drive motor:5 HP
4.Feed motor:1/2 HP
5.Feeding speed:6~8m/min
6.Vacuum suction motor:1 HP
7.Abrasive belt size:5" × 73 " (125 × 1855mm )
8.Abrasive belt speed:18 m/sec
9.Machine size:1120 × 900 × 1380 mm
10.Packing size:1300 × 1100 × 1680 mm
11.Net weight:900 kg
12.Gross weight:1000 kg
Product Specifications
Type
MT-60RS-B2
1.Range of work diameter:ø10~ø60mm
2.Range of work length:300mm~Unlimited
3.Drive motor:5 HP
4.Feed motor:1/2 HP
5.Feeding speed:6~8m/min
6.Vacuum suction motor:1 HP
7.Abrasive belt size:5" × 73 " (125 × 1855mm )
8.Abrasive belt speed:18 m/sec
9.Machine size:1120 × 900 × 1380 mm
10.Packing size:1300 × 1100 × 1680 mm
11.Net weight:900 kg
12.Gross weight:1000 kg
