Home > Products > Wet-Type Abrasive Belt Surface Grinder > TS-208 / TS-212
Product Specifications
MODEL

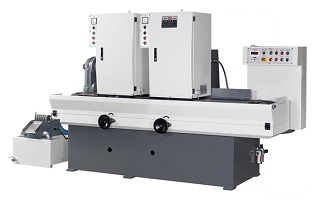

TS-208 / TS-212
1.Working width:200 mm (Max) / 300 mm (Max)
2.Working thickness:0.8~50 mm / 0.8~50 mm
3.Sanding belt size:8"x75" / 13"x75"
4.Conveyor belt size:8"x208" / 13"x208"
5.Feeding speed:2.5~9 M/min / 2.5~9 M/min
6.Sanding belt motor:10 HPx2 / 10 HPx2
7.Feeding motor:1 HP / 2 HP
8.Pump motor:0.25 HP / 0.5 HP
9.Elevation motor:60 Wx2 / 60 Wx2
10.Machine dimensions:126"x49"x73" / 126"x53"x73"
11.Machine weight:2300kgs / 2500kgs
Product Specifications
MODEL
TS-208 / TS-212
1.Working width:200 mm (Max) / 300 mm (Max)
2.Working thickness:0.8~50 mm / 0.8~50 mm
3.Sanding belt size:8"x75" / 13"x75"
4.Conveyor belt size:8"x208" / 13"x208"
5.Feeding speed:2.5~9 M/min / 2.5~9 M/min
6.Sanding belt motor:10 HPx2 / 10 HPx2
7.Feeding motor:1 HP / 2 HP
8.Pump motor:0.25 HP / 0.5 HP
9.Elevation motor:60 Wx2 / 60 Wx2
10.Machine dimensions:126"x49"x73" / 126"x53"x73"
11.Machine weight:2300kgs / 2500kgs
