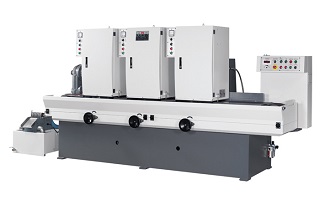

Home > Products > Wet-Type Abrasive Belt Surface Grinder > TS-308 / TS-312
Product Specifications
MODEL
TS-308 / TS-312
1.Working width:200 mm (Max) / 300 mm (Max)
2.Working thickness:0.8~50 mm / 0.8~50 mm
3.Sanding belt size:8"x75" / 13"x75"
4.Conveyor belt size:8"x265" / 13"x265"
5.Feeding speed:2.5~9 M/min / 2.5~9 M/min
6.Sanding belt motor:10 HPx3 / 10 HPx3
7.Feeding motor:2 HP / 3 HP
8.Pump motor:0.5 HP / 1 HP
9.Elevation motor:60 Wx3 / 60 Wx3
10.Machine dimensions:155"x49"x73" / 155"x53"x73"
11.Machine weight:2900kgs / 3300kgs
Product Specifications
MODEL
TS-308 / TS-312
1.Working width:200 mm (Max) / 300 mm (Max)
2.Working thickness:0.8~50 mm / 0.8~50 mm
3.Sanding belt size:8"x75" / 13"x75"
4.Conveyor belt size:8"x265" / 13"x265"
5.Feeding speed:2.5~9 M/min / 2.5~9 M/min
6.Sanding belt motor:10 HPx3 / 10 HPx3
7.Feeding motor:2 HP / 3 HP
8.Pump motor:0.5 HP / 1 HP
9.Elevation motor:60 Wx3 / 60 Wx3
10.Machine dimensions:155"x49"x73" / 155"x53"x73"
11.Machine weight:2900kgs / 3300kgs
