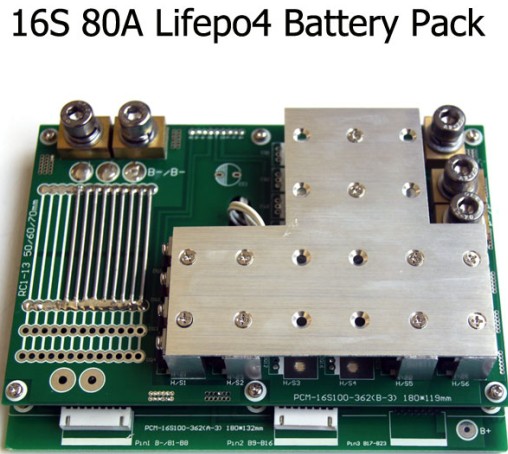

Protection Circuit Module Specifications For 16S LiFePO4 Battery Packs
Model: PCM-16S15/80A (16S)
Charging voltage: DC:57.6 V 3.6V/Cell
Balance voltage for single cell: 3.60+0.025V
Balance current for single cell: 110+10mA
Low Current consumption for single cell: ≤20μA
Maximal continuous Charging current: 15A
Maximal continuous Discharging current: 80A
Over charge detection voltage: 3.90+0.025V
Over charge detection delay time: 0.5—2S
Over charge release voltage: 3.80+0.05V
Over discharge detection voltage: 2.00+0.05V
Over discharge detection delay time: 10-300mS
Over discharge release voltage: 2.30+0.05V
Over current detection voltage: 0.62v
Over current detection current: 200+20A
Detection delay time: 5ms—20ms
Release condition: Cut load, Automatic Recovery
Detection condition: Exterior short circuit
Detection delay time: 200-500us
Release condition: Cut load, Automatic Recovery
Protection circuitry (MOSFET): ≤20mΩ
Operating Temperature Range: -40~+85°C
Storage Temperature Range: -40~+125°C
