RSM2200

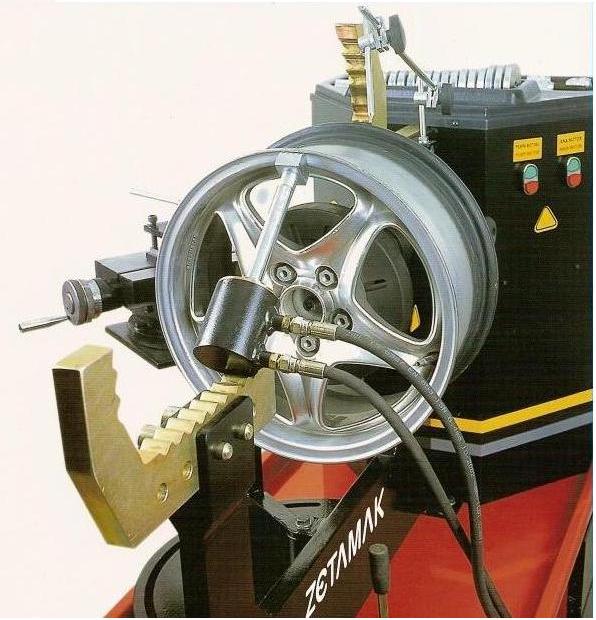

RSM2200 Rim Straightening Machine with Lathe
Technical Specifications
This unique machine is used to correct and straighten all kinds of
defected steel and alloy rims
ranging from 10” to 22”. CE certified by KEMA Quality B.V. / The Netherlands
DIMENSIONS
Height 1310 mm
Length 1110 mm
Width 620 mm
Gross Weight 300 Kg
MOTOR SPECIFICATIONS
Mechanic Motor 0,55 kw, 1400 rpm, 0,75Hp,
7.3 Ampere, 3 phase - single phase, 220V - 380 V
Hydraulic Motor 0,55 kw 900 rpm, 0,75Hp,
8.7 Ampere, 3 Phase - single phase, 220V - 380 V
Sound Level 35 db
HYDRAULIC PISTON POWER
Total pressure = πr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure while working on our RSM1800 / RSM2200 machines.
Technical Specifications
This unique machine is used to correct and straighten all kinds of
defected steel and alloy rims
ranging from 10” to 22”. CE certified by KEMA Quality B.V. / The Netherlands
DIMENSIONS
Height 1310 mm
Length 1110 mm
Width 620 mm
Gross Weight 300 Kg
MOTOR SPECIFICATIONS
Mechanic Motor 0,55 kw, 1400 rpm, 0,75Hp,
7.3 Ampere, 3 phase - single phase, 220V - 380 V
Hydraulic Motor 0,55 kw 900 rpm, 0,75Hp,
8.7 Ampere, 3 Phase - single phase, 220V - 380 V
Sound Level 35 db
HYDRAULIC PISTON POWER
Total pressure = πr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure while working on our RSM1800 / RSM2200 machines.
