RSS1430

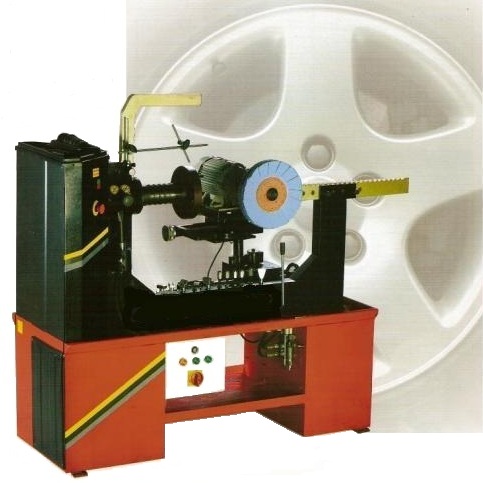

RSS1430 Rim Straightening & Shining Machine
Technical Specifications
DIMENSIONS (PACKING)
Height 1620 mm
Length 1440 mm
Width 800 mm
Net Weight 410 Kg
MOTOR SPECIFICATIONS
Mechanic Motor 0,75 kw , 1400 rpm , 1 hp,
3 phase - single phase, 380 V - 220 V – 7,3 Ampere
Hydraulic Motor 0,75 kw 900 rpm, 1 hp,
3 Phase - single phase, 380 V - 220 V- 8,7 Ampere
Shining Motor 2,2 kw 2800 rpm, 3 Hp,
3 Phase - single phase, 380 V - 220 V - 21 Ampere
Sound Level 45 db
HYDRAULIC PISTON POWER
Total pressure = πr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure in pistons while working on our Rim Straightening and Shining Machines.
Technical Specifications
DIMENSIONS (PACKING)
Height 1620 mm
Length 1440 mm
Width 800 mm
Net Weight 410 Kg
MOTOR SPECIFICATIONS
Mechanic Motor 0,75 kw , 1400 rpm , 1 hp,
3 phase - single phase, 380 V - 220 V – 7,3 Ampere
Hydraulic Motor 0,75 kw 900 rpm, 1 hp,
3 Phase - single phase, 380 V - 220 V- 8,7 Ampere
Shining Motor 2,2 kw 2800 rpm, 3 Hp,
3 Phase - single phase, 380 V - 220 V - 21 Ampere
Sound Level 45 db
HYDRAULIC PISTON POWER
Total pressure = πr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg
Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm.
As you have seen above formula you can have 5 tons of total pressure in pistons while working on our Rim Straightening and Shining Machines.
Certificate
- CE
