Keywords: Pro Audio, Professional Speaker, loudspeaker

Applications：


◆KTV、Pub、main sound reinforcement in rock bar

◆Performance Hall、meeting room、main sound reinforcement in multi-functional hall

◆Big meeting hall、theatre、club、Supplement speaker in Disco Hall

◆Supplement speaker in entertainment room

◆Canteen、shopping mall or indoors

◆Flow stage performance, Supplement of voice

Features：

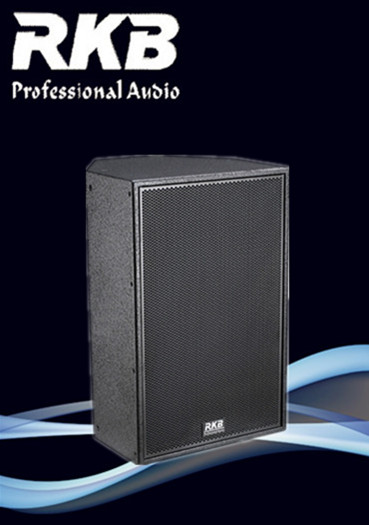

RX-12 multi-functional sound box is composed of a Φ44 mm core titanium membrane HF unit, an 12” LF which has high performance. It is a two way passive full frequency speaker box, which develops new style units ( imported from Europe) and combines with advanced Germany sound technology. The hi-tech materials guarantee the low distortion under big power condition. The HF adopts non-symmetrical compound horns to improve the average sound impact in the room effectively.

The appearance of the box is with compact design, and the experienced skill of professional painting makes the box look much more elegant. Also, it is easy to be hung up. Its birth brings speaker field an artwork of sound.



Specifications：



Frequency Response (±3dB)
45Hz-20kHz

Sensitivity(SPL1W/1M)
97dB

Nominal Impedance
8Ω

Power Handing (AES)
400W

Peak Power
800W

Dispersion(H×V)
90°×50°

MAX SPL@1m
120dB

Crossover
1.9kHZ

Connector
2×Speakon NL4(+1/-1)

Rigging
6×M10 Lifting point 1×bottom bracket

Color
Environmental protection hard black paint

Grille
Spraying hardening steel net

Dimensions(W×D×H)
358mm×337mm×538mm

Weight
26Kg

Power Amplifier(Suggestion)
PRO-600
