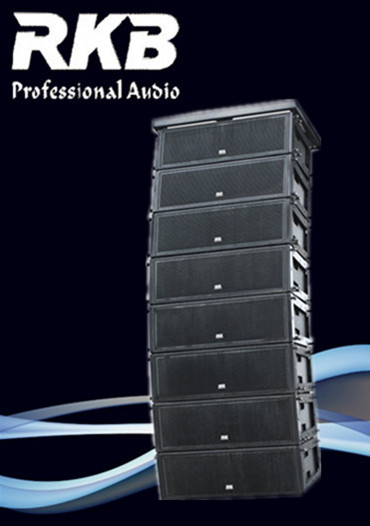

RKB-LA-12F
Pro Audio/ Professional Speaker/ High Power Speaker/ Line Array/ Stage Speaker/ Neodymium Speaker/ Passive Speaker/ Subwoofer
Product ID: Line Array LA-12F
Send Inquiry
Keywords: Pro Audio, Professional Speaker, Line Array
Applications：
◆Various large sports venues, large flow performance
◆Large auditorium, large concerts, theatre
◆Fixed installation system
Features：
LA-12F is a three-way full frequency remote line array speaker, composing of one 12” LF, two 6.5” MF, and two 1.75” HF. It combines innovative horn loading technology to produce a very powerful liine array with maximum dynamic impact. Since it is a 3-way, full range system, it may be used without subwoofers for many applications. The smooth frequency response and precise points frequency ensure that the audience has excellent acoustics. The box is with ultra-thin design, and a single speaker’s vertical angles is only 1 degree, which could make the sound go farther distance stablely. When several LA speakers are tightly connected together, The Voice loss can be reduced to a minimum level. With years of professional painting process, elegant color paint deployment, and with professional aluminum alloy hanging rigging, LA-12F is very flexible and convenient to use.
Specifications：
Frequency Response(±3dB)
50Hz - 20kHz±3dB
Sensitivity(SPL1W/1M)
HF:110dB／MF:108dB／LF:104dB
Power
HF:200W@4ohms; MF:300W; LF:400W(AES)
HF:800W@4ohms; MF:1200W; LF:1600W (Peak)
MAX SPL@1m
140dB
Dispersion
90°H×0-6°V(-6dB) ／120°H×0-6°V(-12dB)
Drivers
2×1.75”HF exit to8×1”branch manifold horn-load
2×6.5”MF compression driver
1×12”LF cone driver (bass-reflex)
Dimensions
380×1060×600mm
Shipping Dimensions：
450×1130×670mm
Weight
68kg
