Keywords: Pro Audio, Professional Speaker, loudspeaker


Applications：


◆KTV、Pub、main sound reinforcement in rock bar

◆Performance Hall、meeting room、main sound reinforcement in multi-functional hall

◆Big meeting hall、theatre、club、Supplement speaker in Disco Hall

◆Supplement speaker in entertainment room

◆Canteen、shopping mall or indoors

◆Flow stage performance, Supplement of voice

Features：

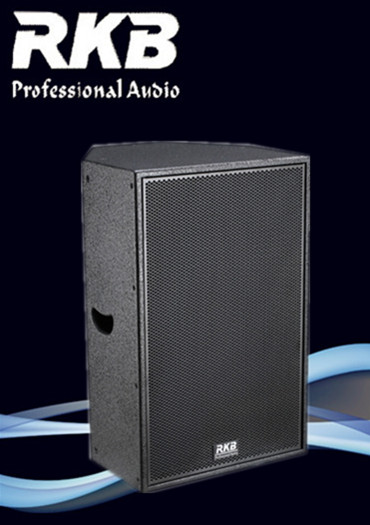

RX-15 utilizes high quality European-imported unit. It is designed to be high-performance two-way passive sound reinforcement system. The tight box stucture offers strong and smooth frequency response curve, so to fix the sound accurately, to control the phase interference and distortion within a small range.

With expectable high-performance for the engineer and acoustics designer, RX-15 is actual a perfect acoustic product. The simple and beautiful appearance is publicly used.


Specifications：


Frequency Response (±3dB)
40Hz-20kHz

Sensitivity(SPL1W/1M)
100dB

Nominal Impedance
8Ω

Power Handing(AES)
500W

Peak Power
1000W

Dispersion(H×V)
90°×50°

MAX SPL@1m
123dB

Crossover
1.5kHZ

Connector
2×Speakon NL4( +1/-1)

Rigging
6×M10 lifting point、1×bottem bracket

Color
Environmental Protection Hard Black Paint

Grille
Spraying Hardening Steel Net

Dimensions(W×D×H)
431mm×416mm×670mm

Weight
36.5Kg

Power Amplifier(Suggestion)
PRO-600
