SPECIFICATION AND PARAMETERS

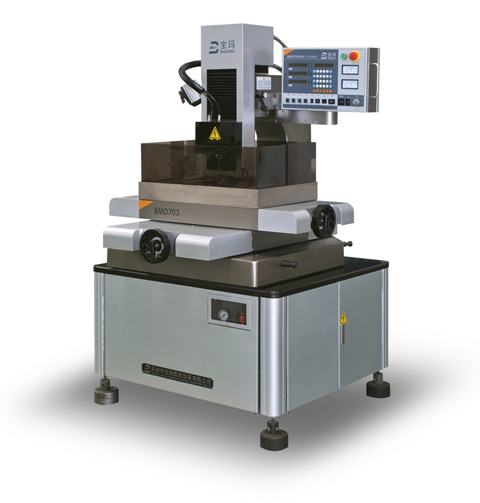

Specification BMD703 Universal Parameter
Work table Size 470 x 360 mm
Drilling Depth
0 - 300 mm
Work Table Travel 400 x 320 mm Z axis Travel 270+(300) mm
Load of Table 300 Kg Max. Drilling Speed 60 mm/min
Electrode Diameter 0.2-3.0 mm Max. Working Current 30 A
Water Tank Capacity 30 L Max. Power comsumption 3.5 KVA
Machine Weight 700 Kg Voltage 220-415V / 50HZ
Machine Dimensions 1120 x 1005 x 1915 mm Working Solution Water/Saponification
Packing Dimensions 1400 x 1450 x 2050 mm Function of setting depth Yes
Control Type ZNC: Z axis NC Control Z axis Travel Control Electric Motor
Specification BMD703 Universal Parameter
Work table Size 470 x 360 mm
Drilling Depth
0 - 300 mm
Work Table Travel 400 x 320 mm Z axis Travel 270+(300) mm
Load of Table 300 Kg Max. Drilling Speed 60 mm/min
Electrode Diameter 0.2-3.0 mm Max. Working Current 30 A
Water Tank Capacity 30 L Max. Power comsumption 3.5 KVA
Machine Weight 700 Kg Voltage 220-415V / 50HZ
Machine Dimensions 1120 x 1005 x 1915 mm Working Solution Water/Saponification
Packing Dimensions 1400 x 1450 x 2050 mm Function of setting depth Yes
Control Type ZNC: Z axis NC Control Z axis Travel Control Electric Motor
