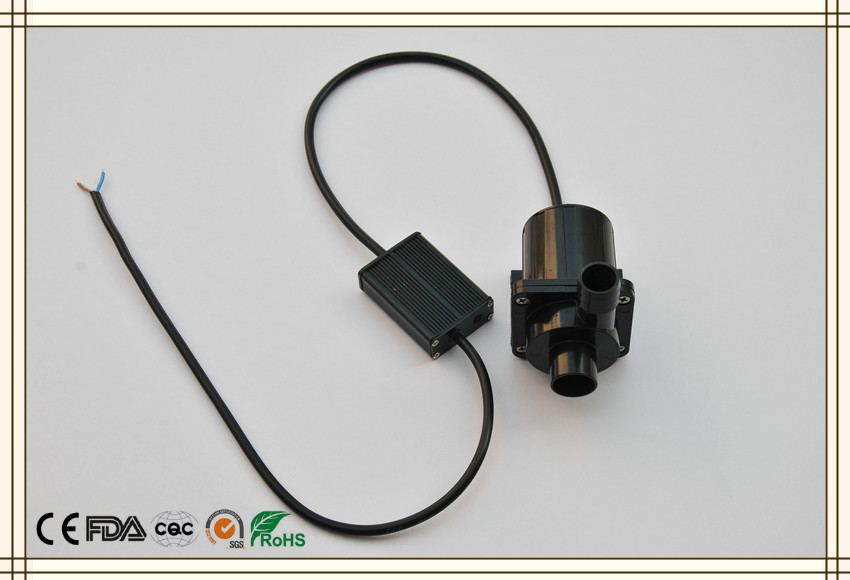

12 volt dc motor pump,speed adjustable
Specification
NO Items Specs
1 Sizes and weight 100.5x84.5x64;480g
2 Dimension of inlet 22.5mm
3 Dimension of outlet 22.5mm
4 Driving method Brushless, Magnetic , 2 phase or 3 phase
5 Pump material PA66+GF30% (optional)
6 Condition of use Continuously
7 Fluids Water, oil, acid and alkali solution etc
8 Max working temp 60℃(2 phase)or 100℃(3 phase)
9 Power consumption 2.5W~50.4W（2 phase） 2.5W~86.4W（3 phase）
10 Rated voltage 12Vdc or 24Vdc
11 Voltage used 5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc
12 Max rated current 2.1A(2 phase)or 3.8A(3 phase)
13 Max flow rate 36L/Min(9.5GPM) ---2 phase 43L/Min(12 GPM) ---3 phase
14 Max Static Head 4m(13ft)---- 2 phase 7m(23ft)---- 3 phase
15 Noise
Specification
NO Items Specs
1 Sizes and weight 100.5x84.5x64;480g
2 Dimension of inlet 22.5mm
3 Dimension of outlet 22.5mm
4 Driving method Brushless, Magnetic , 2 phase or 3 phase
5 Pump material PA66+GF30% (optional)
6 Condition of use Continuously
7 Fluids Water, oil, acid and alkali solution etc
8 Max working temp 60℃(2 phase)or 100℃(3 phase)
9 Power consumption 2.5W~50.4W（2 phase） 2.5W~86.4W（3 phase）
10 Rated voltage 12Vdc or 24Vdc
11 Voltage used 5Vdc ~ 12Vdc or 5Vdc ~ 24Vdc
12 Max rated current 2.1A(2 phase)or 3.8A(3 phase)
13 Max flow rate 36L/Min(9.5GPM) ---2 phase 43L/Min(12 GPM) ---3 phase
14 Max Static Head 4m(13ft)---- 2 phase 7m(23ft)---- 3 phase
15 Noise
