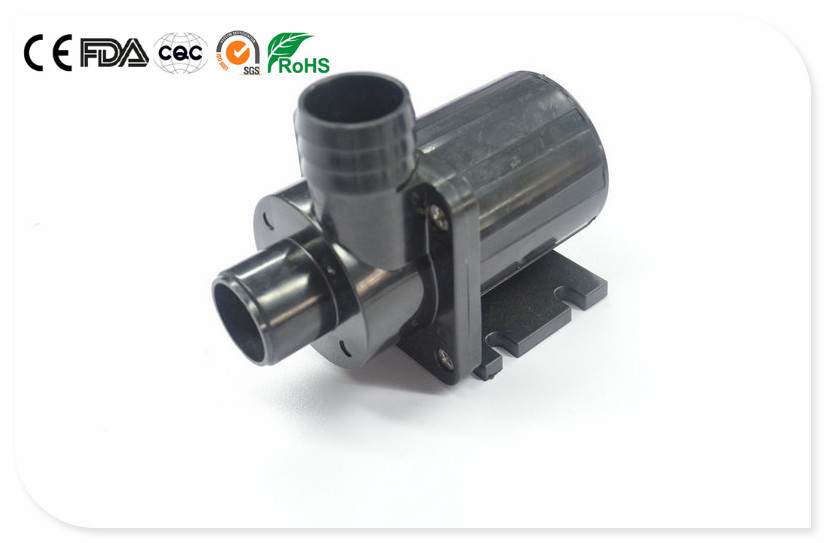

Small and long life Toilet pump from shenzhen,China water pump
Parameters (The technical specification only for reference, it can be customized)
Model Voltage Current Head Flow Power
V (dc) A m L/H w
ZK50A-1223S 12 2.60 2.30 2000 31.2
ZK50A-1223A
ZK50A-1230S 12 3.00 3.00 2200 36.0
ZK50A-1230A
ZK50A-1235S 12 3.80 3.50 2500 45.6
ZK50A-1235A
ZK50A-2423T 24 1.30 2.35 2000 31.2
ZK50A-2423S
ZK50A-2423A
ZK50A-2435T 24 1.90 3.50 2500 45.6
ZK50A-2435S
ZK50A-2435A
ZK50A-2440S 24 3.00 4.00 2900 72.0
ZK50A-2440A
ZK50A-2450S 24 3.60 5.00 3600 86.4
ZK50A-2450A
Remarks The current above is open outlet current, when contact to circulation system the current will cut down to 55%~70% of Rated current.
Parameters (The technical specification only for reference, it can be customized)
Model Voltage Current Head Flow Power
V (dc) A m L/H w
ZK50A-1223S 12 2.60 2.30 2000 31.2
ZK50A-1223A
ZK50A-1230S 12 3.00 3.00 2200 36.0
ZK50A-1230A
ZK50A-1235S 12 3.80 3.50 2500 45.6
ZK50A-1235A
ZK50A-2423T 24 1.30 2.35 2000 31.2
ZK50A-2423S
ZK50A-2423A
ZK50A-2435T 24 1.90 3.50 2500 45.6
ZK50A-2435S
ZK50A-2435A
ZK50A-2440S 24 3.00 4.00 2900 72.0
ZK50A-2440A
ZK50A-2450S 24 3.60 5.00 3600 86.4
ZK50A-2450A
Remarks The current above is open outlet current, when contact to circulation system the current will cut down to 55%~70% of Rated current.
Main Products
dc brushless pump/water pump/centrifugal pump/submersible pump
