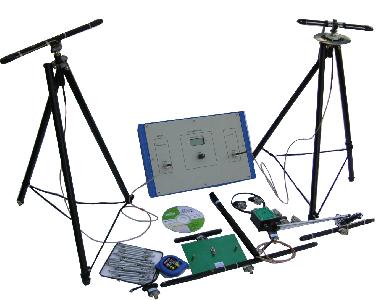

10004
RF Transmitter:
Frequency : 600-750 MHz continuously variable
Output Impedance : 75 Ohms
RF Level : 100 dBuVTypical
Power Supply : 230V @ 50 Hz
RF Receiver:
Frequency : 610 MHz Helical band Pass Filter
Bandwidth : 5 Mhz
Input Impedance : 75 Ohms
Measurement : RF level in dBuV with 0.1dB resolution
Display : 3 ½ LCD
Dynamic Range : 50 dB Log
Power Supply : 230V @ 50 Hz
Experiments:
Variation of field strength with distance
Plot radiation pattern of omni directional antenna
Plot radiation pattern of directional antenna
Polarization of vertical and horizontal antenna
Study resonant and non resonant antenna
Demonstrate reciprocity theorem of antennas
Study current distribution along the element of antenna
Study different antennas polar plots, radiation patterns, gain, beam width, front back ratio
Comparison of different antennas
Frequency : 600-750 MHz continuously variable
Output Impedance : 75 Ohms
RF Level : 100 dBuVTypical
Power Supply : 230V @ 50 Hz
RF Receiver:
Frequency : 610 MHz Helical band Pass Filter
Bandwidth : 5 Mhz
Input Impedance : 75 Ohms
Measurement : RF level in dBuV with 0.1dB resolution
Display : 3 ½ LCD
Dynamic Range : 50 dB Log
Power Supply : 230V @ 50 Hz
Experiments:
Variation of field strength with distance
Plot radiation pattern of omni directional antenna
Plot radiation pattern of directional antenna
Polarization of vertical and horizontal antenna
Study resonant and non resonant antenna
Demonstrate reciprocity theorem of antennas
Study current distribution along the element of antenna
Study different antennas polar plots, radiation patterns, gain, beam width, front back ratio
Comparison of different antennas
