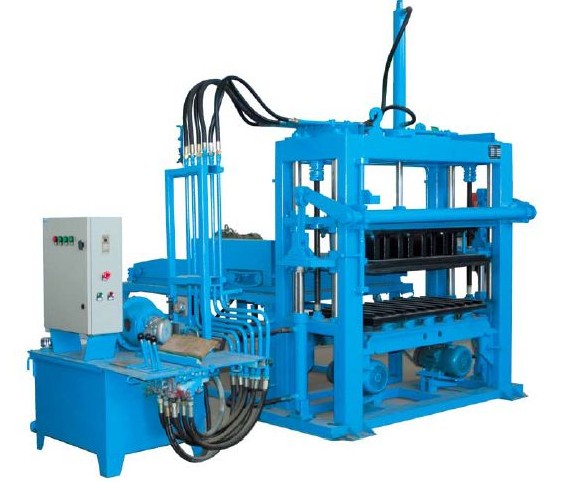

multi-function block/brick making machine
multi-purpose cement brick making machine for making colorful bricks QTY3000 high yield hydraulic block machinery
Product ID: QTY3000
Send Inquiry
Technical Specifications
Description Parameters
Products in one operation 1pc of curbstone(995*120*300mm)
Output in eight hours 400pcs(give an example of 995 curbstone)
Paving brick 200*100*60mm 16pcs/mould
Production capacity 23040 pcs/8 hours
Force of agitation & vibration 68KN
Vibration frequency 5000 times/minute
Vibration amplitude 1.5mm
Vibration time Aobut 10s for one vibration
Installed capacity 15.5KW
Weight of the whole machine 3600KG
External dimensions 3000*2200*2500mm
Description Parameters
Products in one operation 1pc of curbstone(995*120*300mm)
Output in eight hours 400pcs(give an example of 995 curbstone)
Paving brick 200*100*60mm 16pcs/mould
Production capacity 23040 pcs/8 hours
Force of agitation & vibration 68KN
Vibration frequency 5000 times/minute
Vibration amplitude 1.5mm
Vibration time Aobut 10s for one vibration
Installed capacity 15.5KW
Weight of the whole machine 3600KG
External dimensions 3000*2200*2500mm
Certificate
- CE
- BV
- SGS
- ISO9001
Main Products
Solid/hollow/porous/paving Block making machine curbstone/tile machine
