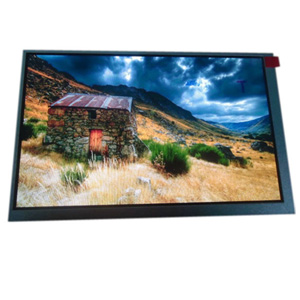

7 inch TFT LCD module

Detailed technical parameters please refer to product specifications
Screen Size:diagonal 7 inch
Module outline size:184.90(W)×100.0 (H)×3.4(T)mm
Number of Dots:800×(RGB)×480
Aspect Ratio:16:9
Viewing direction:6.00 oclock
Brightness:250cd/㎡(TYP.)
Display mode:TFT
Multiplexing:1/480DUTY, 1/23BIAS
FPC length:65.93mm
Working Current(DC12V): DC160mA±20mA
Working Voltage:DC9-18V(standard: DC12V)
Connection mode:COG+FPC
Storage Temperature:-30℃to +70℃
Working Temperature:-20℃to +60℃
Interface:40PIN/50PIN/60PIN
Working Temperature:-20℃to +60℃
Driver IC:ILI6122/ILI5960/OTA7001A/OTD9960A
