This is an unconventional product! It is small, it is stable, it generates no heat!!
High stability
100v Maximum working voltage, prevent the high voltage causing damage when engine starts.
Low voltage protection preserving battery power.
Operating temperature: -20 to +85 degree centigrade
Storage temperature: -65 to +150 degree centigrade
95% efficiency IC adopted, generates almost no heat, ensure more stable performance.
Shundown current less than 50uA, protecting battery from over discharging when engine stops.
Protection for over load, over current, short circuit, over heat.
Small dimension, easy installment
Dimension: 45X45X18MM
Reliable performance
Max output current >15A
Output voltage accuracy: 12V+/-1%
Excellent Line and Load Transient Response
Synchronizable up to 600kHz
Ripple Voltage (peak to peak), typical value is 0.6% of the output
voltage
High stability
100v Maximum working voltage, prevent the high voltage causing damage when engine starts.
Low voltage protection preserving battery power.
Operating temperature: -20 to +85 degree centigrade
Storage temperature: -65 to +150 degree centigrade
95% efficiency IC adopted, generates almost no heat, ensure more stable performance.
Shundown current less than 50uA, protecting battery from over discharging when engine stops.
Protection for over load, over current, short circuit, over heat.
Small dimension, easy installment
Dimension: 45X45X18MM
Reliable performance
Max output current >15A
Output voltage accuracy: 12V+/-1%
Excellent Line and Load Transient Response
Synchronizable up to 600kHz
Ripple Voltage (peak to peak), typical value is 0.6% of the output
voltage
Features

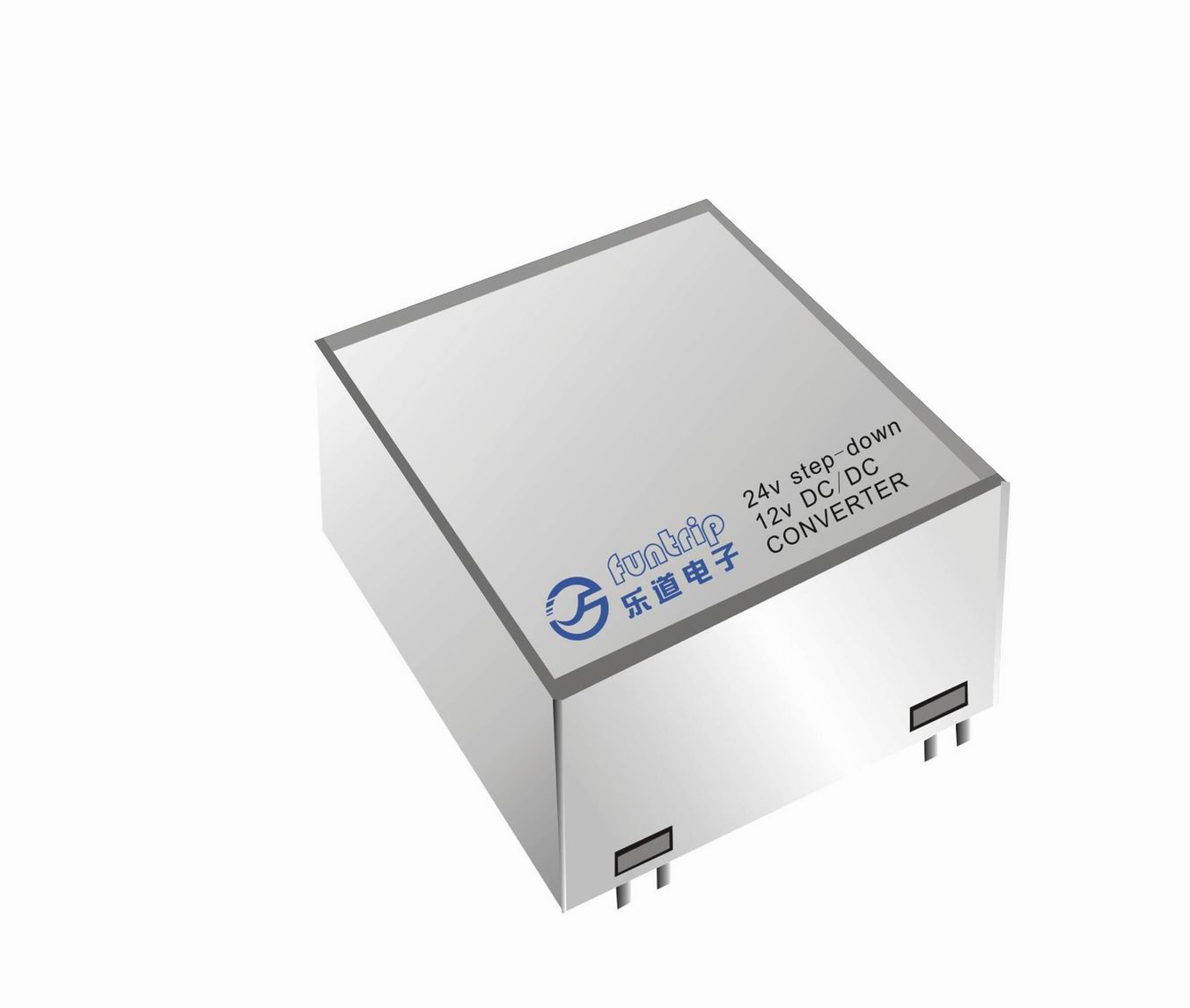

24V step-down 12V DC/DC Converter^$^#Main Products
