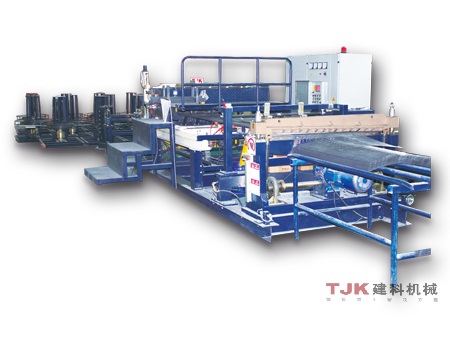

CNC fencing mesh welding line GWC-1200XM
CNC fencing mesh welding line GWC-1200XM
Products Introduction:
The steel wire mesh welding line may produce livestock breeding mesh and suitable for producing small specification of mesh and small diameter of wire processing , with quickly, accurate and reliable welding.
CHARACTERISTICS:
1. CNC wheel-step design to provide high accurate mesh grid (patent).
2. Electrode lift system to extend electrode life (patent).
3. Line wire loop and balance system to ensure wire mesh accuracy.
4. Line wire vertical straightening system to provide high quality (patent).
5. Unique high speed air cylinder used on welding electrode to provide high reliability.
6. Welding pressure steplessly adjustation to apply multiple wire diameter (patent).
7. High speed mesh cutting system, 120 times per min.
8. Automatically high speed cross wire feeding system(patent).
9. Automatic mesh turning, stacking and conveying system.
10. Direct circuit to enhance welding quality (patent).
11. Control systems: YASKAWA, SCHNEIDER, MOLLER.
Products and Services:
Stirrup bender, rebar shearing line, rebar bending center, wire mesh welding machine, wire straightening and cutting machine, wire cold rolling machine, lattice girder welding machine, butt welder, wire mesh welding machine, Reinforcing mesh, mesh welding machine, welded mesh machine, mesh machinery, steel reinforcing machine, machine mesh, wire mesh welded machine, welding machine, welding line, welding mesh machine and wire mesh machinery etc.
Operating Video Link:
v.youku.com/v_show/id_XMjA0NTU5ODcy.html
TECHNICAL DATA:
Model GWC-900XM GWC-1200XM GWC-1500XM
Installed power(kva) 5*25 6*25 7*25
System coltagte(v) 380V 50Hz 380V 50Hz 380V 50Hz
Control voltage(v) 24V 24V 24V
Power cable cross-sectional area 3*70mm²+1*25mm² 3*95mm²+1*35mm² 3*120mm²+1*50mm²
Max.mesh width 900 1200 1500
Line wire spacing ≥25mm steplessly adjustable
Cross wire spacing ≥20mm steplessly adjustable
Wire diameter(mm) 1.8-3 1.8-3 1.8-3
Max.welding capacity 3+3 3+3 3+3
Max.wlding speed(time/min) 30-60 30-60 30-60
Max.welding spot nos.(group) 18 18 18
Pressed air(MPa) ≥0.5 ≥0.5 ≥0.5
Wire feeding method Pre-cut/off-coil
Caterconer accutracy ≤2 ≤2 ≤2
Raw material Cold drawn wire, stainless wire, galvanized wire
Products Introduction:
The steel wire mesh welding line may produce livestock breeding mesh and suitable for producing small specification of mesh and small diameter of wire processing , with quickly, accurate and reliable welding.
CHARACTERISTICS:
1. CNC wheel-step design to provide high accurate mesh grid (patent).
2. Electrode lift system to extend electrode life (patent).
3. Line wire loop and balance system to ensure wire mesh accuracy.
4. Line wire vertical straightening system to provide high quality (patent).
5. Unique high speed air cylinder used on welding electrode to provide high reliability.
6. Welding pressure steplessly adjustation to apply multiple wire diameter (patent).
7. High speed mesh cutting system, 120 times per min.
8. Automatically high speed cross wire feeding system(patent).
9. Automatic mesh turning, stacking and conveying system.
10. Direct circuit to enhance welding quality (patent).
11. Control systems: YASKAWA, SCHNEIDER, MOLLER.
Products and Services:
Stirrup bender, rebar shearing line, rebar bending center, wire mesh welding machine, wire straightening and cutting machine, wire cold rolling machine, lattice girder welding machine, butt welder, wire mesh welding machine, Reinforcing mesh, mesh welding machine, welded mesh machine, mesh machinery, steel reinforcing machine, machine mesh, wire mesh welded machine, welding machine, welding line, welding mesh machine and wire mesh machinery etc.
Operating Video Link:
v.youku.com/v_show/id_XMjA0NTU5ODcy.html
TECHNICAL DATA:
Model GWC-900XM GWC-1200XM GWC-1500XM
Installed power(kva) 5*25 6*25 7*25
System coltagte(v) 380V 50Hz 380V 50Hz 380V 50Hz
Control voltage(v) 24V 24V 24V
Power cable cross-sectional area 3*70mm²+1*25mm² 3*95mm²+1*35mm² 3*120mm²+1*50mm²
Max.mesh width 900 1200 1500
Line wire spacing ≥25mm steplessly adjustable
Cross wire spacing ≥20mm steplessly adjustable
Wire diameter(mm) 1.8-3 1.8-3 1.8-3
Max.welding capacity 3+3 3+3 3+3
Max.wlding speed(time/min) 30-60 30-60 30-60
Max.welding spot nos.(group) 18 18 18
Pressed air(MPa) ≥0.5 ≥0.5 ≥0.5
Wire feeding method Pre-cut/off-coil
Caterconer accutracy ≤2 ≤2 ≤2
Raw material Cold drawn wire, stainless wire, galvanized wire
Certificate
- CE
- TUV
- ISO9001:2000
