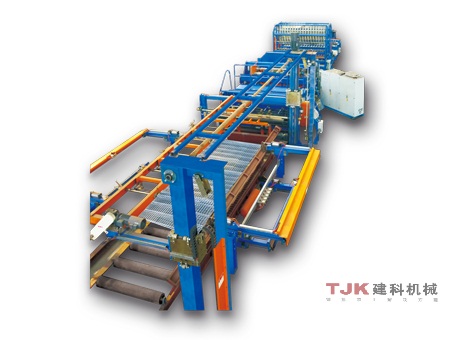

CNC Wire mesh welding machine GWC-2050
CNC Wire mesh welding machine GWC-2050
The equipment is hydraulic bending steel mesh production line is applicable to the rapid development to today`s construction industry needs design, the small size and easy to move, flexible variety of sizes, according to the demand curve at any angle between the 800-1800.
CHARACTERISTIC:
1. Independent hydraulic driving device.
2. Imported electricity components.
3. Mesh bending control system easy for operate.
4. Control panel easy for operate.
5. Imported hydraulic system.
6. Control systems: SIEMENS, MITSUBISHI, PANASONIC.
Operating Video Link:
v.youku.com/v_show/id_XMjA0NTU5ODcy.html
Products and Services:
Stirrup bender, rebar shearing line, rebar bending center, wire mesh welding machine, wire straightening and cutting machine, wire cold rolling machine, lattice girder welding machine, butt welder, wire mesh welding machine, Reinforcing mesh, mesh welding machine, welded mesh machine, mesh machinery, steel reinforcing machine, machine mesh, wire mesh welded machine, welding machine, welding line, welding mesh machine and wire mesh machinery etc.
TECHNICAL DATA:
Model GWC-2050 GWC-2200 GWC-2400 GWC2600
Installed power(kva) 6*40 6*40 6*40 6*40
System coltagte(v) 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz
Control voltage(v) DC 24V DC 24V DC 24V DC 24V
Power cable cross-sectional area 3*150mm ² +1*50mm ² 3*150mm ² 3*185mm ² +1*95mm ²
Max.mesh width 2200 2300 2600 2600
Line wire spacing 50-200 CNC 50-200CNC 50-200 CNC 50-200CNC
Cross wire spacing ≥25mm steplessly adjustable
Wire diameter(mm) 3-6 3-6 3-6 3-6
Max. welding capacity 6+6 6+6 6+6 6+6
Max. welding speed(time/min) 60-100 60-100 60-100 60-100
Max. welding spot nos.(group) 20 24 24 26
Pressed air(MPa) ≥0.6 ≥0.6 ≥0.6 ≥0.6
Wire feeding method Pre-cut/off-coil
Cater conrner accuracy(mm) ≤2 ≤2 ≤2 ≤2
Raw material Cold drawn wire, stainless wire, galvanized wire
The equipment is hydraulic bending steel mesh production line is applicable to the rapid development to today`s construction industry needs design, the small size and easy to move, flexible variety of sizes, according to the demand curve at any angle between the 800-1800.
CHARACTERISTIC:
1. Independent hydraulic driving device.
2. Imported electricity components.
3. Mesh bending control system easy for operate.
4. Control panel easy for operate.
5. Imported hydraulic system.
6. Control systems: SIEMENS, MITSUBISHI, PANASONIC.
Operating Video Link:
v.youku.com/v_show/id_XMjA0NTU5ODcy.html
Products and Services:
Stirrup bender, rebar shearing line, rebar bending center, wire mesh welding machine, wire straightening and cutting machine, wire cold rolling machine, lattice girder welding machine, butt welder, wire mesh welding machine, Reinforcing mesh, mesh welding machine, welded mesh machine, mesh machinery, steel reinforcing machine, machine mesh, wire mesh welded machine, welding machine, welding line, welding mesh machine and wire mesh machinery etc.
TECHNICAL DATA:
Model GWC-2050 GWC-2200 GWC-2400 GWC2600
Installed power(kva) 6*40 6*40 6*40 6*40
System coltagte(v) 380V 50Hz 380V 50Hz 380V 50Hz 380V 50Hz
Control voltage(v) DC 24V DC 24V DC 24V DC 24V
Power cable cross-sectional area 3*150mm ² +1*50mm ² 3*150mm ² 3*185mm ² +1*95mm ²
Max.mesh width 2200 2300 2600 2600
Line wire spacing 50-200 CNC 50-200CNC 50-200 CNC 50-200CNC
Cross wire spacing ≥25mm steplessly adjustable
Wire diameter(mm) 3-6 3-6 3-6 3-6
Max. welding capacity 6+6 6+6 6+6 6+6
Max. welding speed(time/min) 60-100 60-100 60-100 60-100
Max. welding spot nos.(group) 20 24 24 26
Pressed air(MPa) ≥0.6 ≥0.6 ≥0.6 ≥0.6
Wire feeding method Pre-cut/off-coil
Cater conrner accuracy(mm) ≤2 ≤2 ≤2 ≤2
Raw material Cold drawn wire, stainless wire, galvanized wire
Certificate
- CE
- TUV
- ISO9001:2000
