Shanghai Alustrong Construction Materials Co., Ltd. Is the all-around supplier and exporter of aluminum construction materials in China.
Aluminum Composite Panel, we supply interior and exterior panels with PVDF or Polyester coating in full colors.we have two the most advanced wider producing line,The annual capacity is 3000000 square meters. The production process is completely monitored by computer, leading to consistent technique and good quality control.
Aluminum Composite Panel, we supply interior and exterior panels with PVDF or Polyester coating in full colors.we have two the most advanced wider producing line,The annual capacity is 3000000 square meters. The production process is completely monitored by computer, leading to consistent technique and good quality control.
Specifications

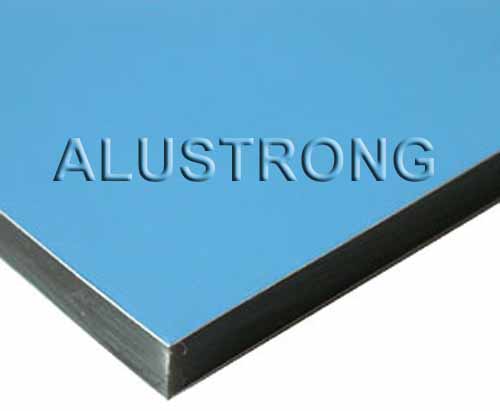

- aluminum composite panel
- interior and exterior panels with PVDF or Polyester coating in full colors.we have two the most advanced wider producing line,The annual capacity is 3000000 square meters. The production process is completely monitored by computer, leading to consistent technique and good quality control.
- STANDARD
- according to GB/T 17748-1999 standard
- MATERIAL
- The front side-Aluminum coated with PVDF or Polyester
- The Core-Nontoxic Polyethylene.
- The back side-Aluminum coated with polyester or non-coating.
- *SURFACE FINISH: is treated with three HYLAR 5000 PVDF resin
- coating systems, the PVDF content is above 70%
- *SURFACE COATING THICKNESS: 30um.
- ACP and ALUMIN SKIN THICKNESS
- *ACP THICKNESS-3mm, 4mm,5mm,6mm.
- *Aluminum SKIN THICKNESS- 0.1mm, 0.12mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.45mm, 0.5mm
- SIZE
- *Width -1220mm,1300mm,1350mm,1600mm.
- *Length -2440mm, 3050mm, 3200mm(Max.6meter).
- *Nonstandard sizes are available according to customer's request.
Features
- FEATURES of ACP
- *Lightweight, surface flatness high strength.
- *Excellent in heat insulation, sound insulation, fire-resistance, acid-resistance, alkali-resistance, weatherproofness and non-resonance.
- *Uniform color, various colors.
- *Can be easily processed and quickly installed.
- *Bright, elegant, and magnificent, it fits various designs.
- *HYLAR 5000 PVDF resin features strong chemical proofness panel's unique colors can be easily maintained.
- APPLICATIONS
- Specific functions and designs Featuring, can be widely used in galleries, exhibitions, saloons, stores, offices, banks, hotels, restaurants, apartments and the other kinds of buildings as an ideal decorative materials for:
- *The outer-wall & inner-wall of buildings.
- *Kitchen cabinets, billboards, signboards, tunnel, subway interiors.
- *Ceilings, eaves, galleries, balconies, partitions, interior decorations.
- *Telephone booths,vehicle bodies,yachts,industrial usage, etc.
Main Products
aluminum composite panel, production line of aluminum composite panel
