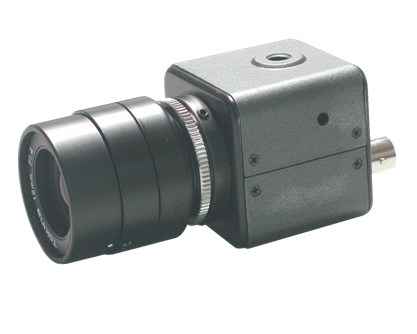

1/3 CCD High sensitivity, High resolution Microscope color camera

Product ID: CPT-C502

Send Inquiry
Features & Characteristic:

  • Built with 1/3" color Sony CCD.
  • High sensitivity 0.01 lux, 540 TVL resolution.
  • Auto gain under dark Area to prevent noise
  • Rear panel DSP switches for easy set up
  • Mirror function ON/OFF
Image sensor Color 1/3" Sony CCD
Scanning system 2:1 Interlace scanning
Scanning frequency NTSC: Hor15,734Hz x Ver59.94Hz,60Hz Line lock
  PAL: Hor. 15,625Hz x Ver. 50Hz,    50Hz Line lock
Picture elements NTSC: 811(H) x 508(V),     525 lines 60Hz
  PAL: 795(H) x 596(V),        625 lines 50Hz
Resolution Color mode 540TVL
Sensitivity 0.01 Lux
S/N Ratio more than 65dB (AGC Off)
Auto Electronic shutter 1/50(60) ~ 1/100,000 second
Back Light Compensation On / Off
Video Output 1.0 Vp-p, 75ohm BNC
Gamma 0.45
Mirror function ON / OFF
Lens mounting C or CS mounting,
Power voltage DC 12V,  error margin 10%
Power consumption 110mA, error margin 10mA
Dimension & weight 34(W) x 36(W) x 70(L) mm,     120 g.
Ambient Temperature Operating: -10°C ~ +50°C, Storage: -20°C ~ +60°C
Ambient Humidity 80% operating,  90% operating
