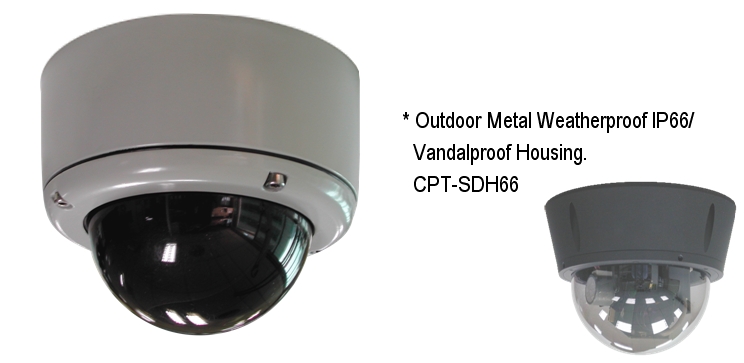

1/3 Super HAD Vandal proof High sensitivity 520TVL DSP color Dome camera

Product ID: CPT-VO58 series

Send Inquiry
Features & Characteristic:

  • Compatible to various Varifocal auto iris lenses
  • Resolution 580TVL resolution.
  • Easy installation & adjustment design: suitable for public places safety surveillance.
  • DSP (Digital Signal Processing) Video quality.
  • Auto electronic shutter, AGC, AWB,
  • Super dynamic range processing between light & dark area, suitable under IR  illumination.
  • Multi level gain setting, up to 65dB gain value.
  • Strong image sensor to prevent light over flow.
  • Auto gain under dark area to prevent noise.
  • Independent gain control between Day & Night.
Image sensor Color 1/3" Super HAD CCD
Scanning system 2:1 Interlace scanning
Scanning frequency NTSC: Hor15,734Hz x Ver59.94Hz,60Hz Line lock PAL: Hor. 15,625Hz x Ver. 50Hz,    50Hz Line lock
Picture elements NTSC: 811(H) x 508(V),  PAL: 795(H) x 596(V)
Resolution CVBS  520TVL
Sensitivity (AGC on) 0.02 Lux at F1.2,     0 Lux under IR illumination
S/N Ratio >55dB    (AGC off, AESC off, Y sig.)
Auto Electronic shutter 1/50(60) ~ 1/100,000 second
Back Light Compensation 256 detection area + enhanced center compenstn.
Auto Gain Control (AGC) Up to 65 dB = ALC + Sample 32dB + DSP 28dB
White Balance adaptation Auto White Balance:  2400°K~12000°K
Picture aperture Hor. 2H,     Ver. 2V     Enhancement
Synchronization Internal.
Video Output 1.0 Vp-p, 75ohm BNC
Gamma 0.45
Visible spectrum 240nM ~ 1,200nM
D.S.P. memory format 16 Bit 256 word
D.S.P. converter ratio 8 Bit (A/D),     10Bit (D/A)
D.S.P. storage device EEPROM
Power voltage DC 12
Power consumption 2W,    100mA
Casing structure Ultra hard grade aluminum w/ paint finish
Dimension & weight 142(Ø) x 105(H) mm,   675 g.
Ambient Temperature Operating: -15°C ~ +60°C, Storage: -30°C ~ +70°C
Ambient Humidity 0 to 95% relative,      non-condensing.
Model  #  description w/ Fixed iris
CPT-VO582   2.1 / 2.5 / 2.9 CPT-VO586   6mm
CPT-VO582   3.6 mm CPT-VO588   8mm
CPT-VO584   4 / 4.3 mm CPT-VO5812  12mm
Model  #  description w/Auto iris Lenses
CPT-VO582A   2.5 mm fixed CPT-VO5828   2.5 ~ 8.5 mm
CPT-VO58A   3.5 mm fixed CPT-VO5838   3.5 ~ 8.0 mm
CPT-VO586A   6.0 mm fixed CPT-VO5831   3.3 ~ 12.0 mm
CPT-VO5812A 12.0 mm fixed CPT-VO5861   6.0 ~ 16.0 mm
CPT-VO5816 16.0 mm fixed CPT-VO5892   9.0 ~ 22.0 mm
CPT-VO5825 25.0 mm fixed CPT-VO5820 20.0 ~ 42.0 mm
